| Manufacturer Part Number: | CMPDM202PH TR |
|---|---|
| Manufacturer: | Central Semiconductor Corp |
| Product Category: | Transistors - FETs, MOSFETs - Single |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | MOSFET P-CH 20V 2.3A SOT-23F |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | CMPDM202PH TR Datasheet |
| Internal Part Number | 898-CMPDM202PH TR | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | RoHS Declaration of Compliance | |
| Online Catalog | P-Channel Standard FETs | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - FETs, MOSFETs - Single | |
| Manufacturer | Central Semiconductor Corp | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| FET Type | MOSFET P-Channel, Metal Oxide | |
| FET Feature | Standard | |
| Drain to Source Voltage (Vdss) | 20V | |
| Current - Continuous Drain (Id) @ 25°C | 2.3A (Ta) | |
| Rds On (Max) @ Id, Vgs | 88 mOhm @ 1.2A, 5V | |
| Vgs(th) (Max) @ Id | 1.4V @ 250µA | |
| Gate Charge (Qg) @ Vgs | 12nC @ 5V | |
| Input Capacitance (Ciss) @ Vds | 800pF @ 10V | |
| Power - Max | 350mW | |
| Operating Temperature | -55°C ~ 150°C (TJ) | |
| Mounting Type | Surface Mount | |

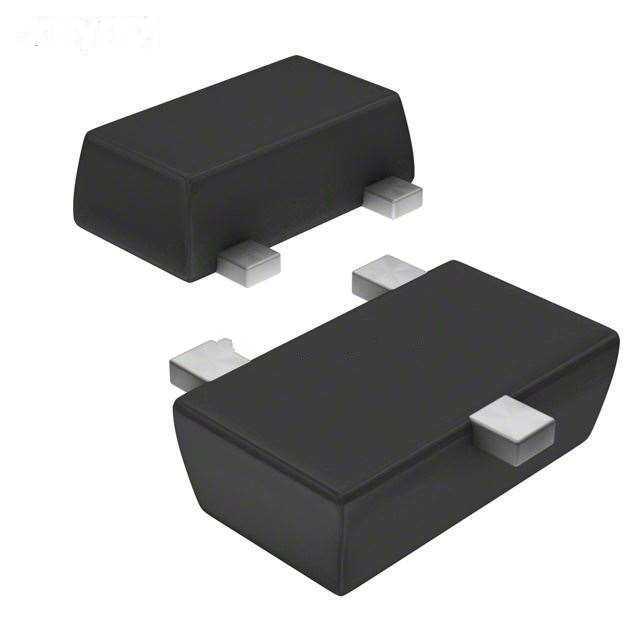

| Package / Case | SOT-23-3 Flat Leads | |
| Supplier Device Package | SOT-23F | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | CMPDM202PH TR | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
CMPDM202PH TR is in stock for immediate shipping now. We are the distributor of Central Semiconductor Corp all series components. The condition of CMPDM202PH TR is new and unused, you can buy CMPDM202PH TR Central Semiconductor Corp with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CMPDM202PH TR.
