| Manufacturer Part Number: | CPH6538-TL-H |
|---|---|
| Manufacturer: | ON Semiconductor |
| Product Category: | Transistors - Bipolar (BJT) - Arrays |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | TRANS 2NPN 30V 0.7A 6CPH |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | CPH6538-TL-H Datasheet |
| Internal Part Number | 898-CPH6538-TL-H | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Design/Specification | Raw Material Change 22/Jul/2015 | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - Bipolar (BJT) - Arrays | |
| Manufacturer | ON Semiconductor | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Transistor Type | 2 NPN (Dual) | |
| Current - Collector (Ic) (Max) | 700mA | |
| Voltage - Collector Emitter Breakdown (Max) | 30V | |
| Vce Saturation (Max) @ Ib, Ic | 190mV @ 10mA, 200mA | |
| Current - Collector Cutoff (Max) | 100nA (ICBO) | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 300 @ 50mA, 2V | |
| Power - Max | 600mW | |
| Frequency - Transition | 540MHz | |
| Mounting Type | Surface Mount | |
| Package / Case | SC-74, SOT-457 | |

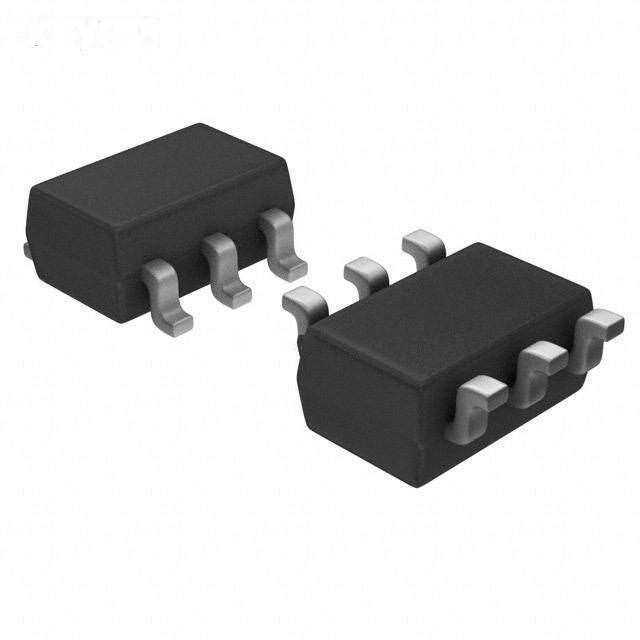

| Supplier Device Package | 6-CPH | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | CPH6538-TL-H | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
CPH6538-TL-H is in stock for immediate shipping now. We are the distributor of ON Semiconductor all series components. The condition of CPH6538-TL-H is new and unused, you can buy CPH6538-TL-H ON Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CPH6538-TL-H.
