| Manufacturer Part Number: | CS20-22MOF1 |
|---|---|
| Manufacturer: | IXYS |
| Product Category: | Thyristors - SCRs |
| Available Quantity: | 9485 Pieces |
| Unit Price: | Quote by Email |
| Description: | SCR 2200V Standard Recovery Through Hole ISOPLUS i4-PAC™ |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | CS20-22MOF1 Datasheet |
| Internal Part Number | 898-CS20-22MOF1 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | Phase Control Thyristors Standard Recovery SCRs | |
| Category | Discrete Semiconductor Products | |
| Family | Thyristors - SCRs | |
| Manufacturer | IXYS | |
| Series | - | |
| Packaging | Tube | |
| Part Status | Active | |
| Voltage - Off State | 2200V | |
| Voltage - Gate Trigger (Vgt) (Max) | 2.3V | |
| Current - Gate Trigger (Igt) (Max) | 250mA | |
| Voltage - On State (Vtm) (Max) | 1.5V | |
| Current - On State (It (AV)) (Max) | 18A | |
| Current - On State (It (RMS)) (Max) | - | |
| Current - Hold (Ih) (Max) | 150mA | |
| Current - Off State (Max) | 50µA | |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 200A @ 50Hz | |
| SCR Type | Standard Recovery | |
| Operating Temperature | -40°C ~ 125°C | |
| Mounting Type | Through Hole | |

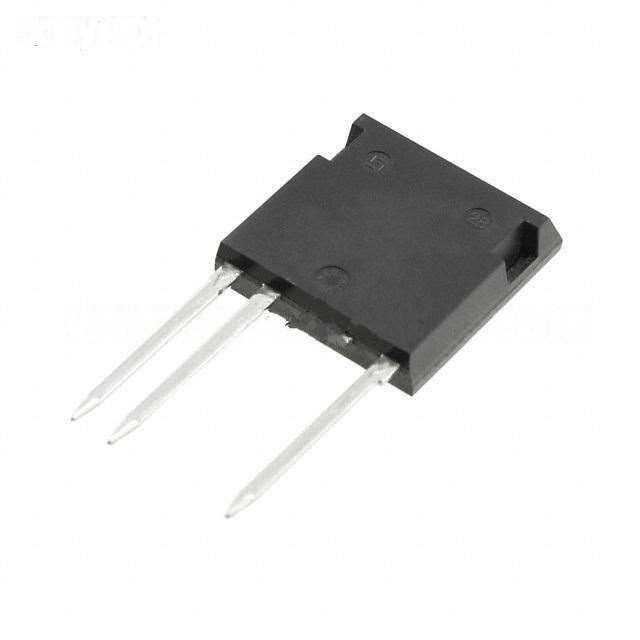

| Package / Case | i4-Pac™-4, Isolated | |
| Supplier Device Package | ISOPLUS i4-PAC™ | |
| Standard Package | 25 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | CS20-22MOF1 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
CS20-22MOF1 is in stock for immediate shipping now. We are the distributor of IXYS all series components. The condition of CS20-22MOF1 is new and unused, you can buy CS20-22MOF1 IXYS with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CS20-22MOF1.
