| Manufacturer Part Number: | CSD13202Q2 |
|---|---|
| Manufacturer: | T-I |
| Product Category: | Transistors - FETs, MOSFETs - Single |
| Available Quantity: | 12010 Pieces |
| Unit Price: | Quote by Email |
| Description: | MOSFET N-CH 12V 76A 6SON |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | CSD13202Q2 Datasheet |
| Internal Part Number | 898-CSD13202Q2 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Design/Specification | Marking Standardization 29/Jan/2015 | |
| Manufacturer Product Page | CSD13202Q2 Specifications | |
| Online Catalog | N-Channel Standard FETs | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - FETs, MOSFETs - Single | |
| Manufacturer | T I | |
| Series | NexFET™ | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| FET Type | MOSFET N-Channel, Metal Oxide | |
| FET Feature | Standard | |
| Drain to Source Voltage (Vdss) | 12V | |
| Current - Continuous Drain (Id) @ 25°C | 22A (Ta) | |
| Rds On (Max) @ Id, Vgs | 9.3 mOhm @ 5A, 4.5V | |
| Vgs(th) (Max) @ Id | 1.1V @ 250µA | |
| Gate Charge (Qg) @ Vgs | 6.6nC @ 4.5V | |
| Input Capacitance (Ciss) @ Vds | 997pF @ 6V | |
| Power - Max | 2.7W | |
| Operating Temperature | -55°C ~ 150°C (TJ) | |
| Mounting Type | Surface Mount | |

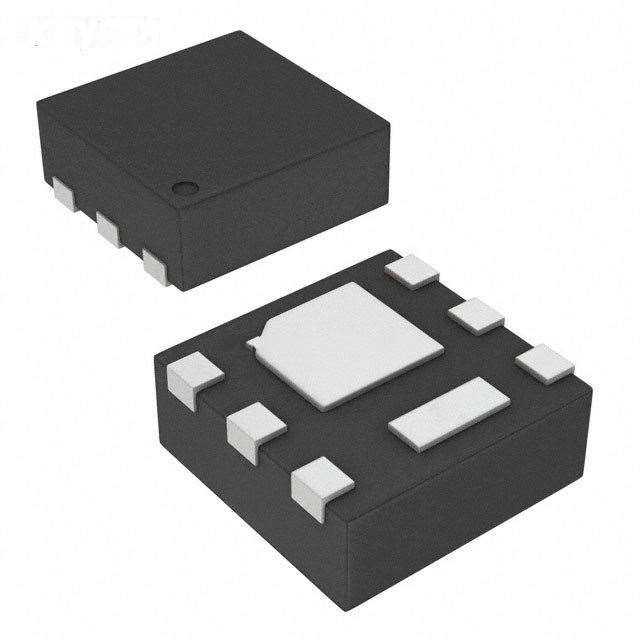

| Package / Case | 6-VDFN Exposed Pad | |
| Supplier Device Package | 6-WSON (2x2) | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | CSD13202Q2 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
CSD13202Q2 is in stock for immediate shipping now. We are the distributor of T-I all series components. The condition of CSD13202Q2 is new and unused, you can buy CSD13202Q2 T-I with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CSD13202Q2.
