;;2.jpg)
| Manufacturer Part Number: | DB2G42900L1 |
|---|---|
| Manufacturer: | Panasonic Electronic Components |
| Product Category: | Diodes - Rectifiers - Single |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | WL CSP LOW VF 40V SCHOTTKY DIODE |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DB2G42900L1 Datasheet |
| Internal Part Number | 898-DB2G42900L1 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | Wearables Technology Components | |
| Online Catalog | Schottky Diode | |
| Category | Discrete Semiconductor Products | |
| Family | Diodes - Rectifiers - Single | |
| Manufacturer | Panasonic Electronic Components | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Diode Type | Schottky | |
| Voltage - DC Reverse (Vr) (Max) | 40V | |
| Current - Average Rectified (Io) | 1A | |
| Voltage - Forward (Vf) (Max) @ If | 520mV @ 1A | |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | |
| Reverse Recovery Time (trr) | 8.8ns | |
| Current - Reverse Leakage @ Vr | 150µA @ 40V | |
| Capacitance @ Vr, F | 28pF @ 10V, 1MHz | |
| Mounting Type | Surface Mount | |

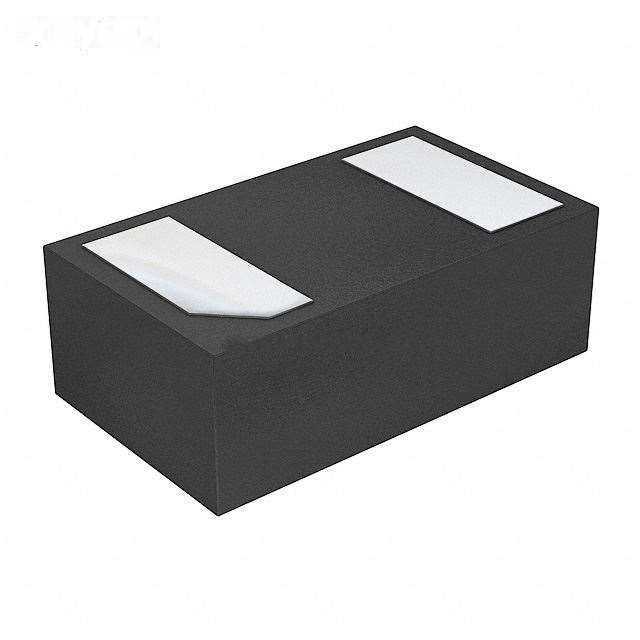

| Package / Case | 0402 (1005 Metric) | |
| Supplier Device Package | 0402 (1005 Metric) | |
| Operating Temperature - Junction | 150°C (Max) | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DB2G42900L1 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DB2G42900L1 is in stock for immediate shipping now. We are the distributor of Panasonic Electronic Components all series components. The condition of DB2G42900L1 is new and unused, you can buy DB2G42900L1 Panasonic Electronic Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DB2G42900L1.
