| Manufacturer Part Number: | DB2X41500L |
|---|---|
| Manufacturer: | Panasonic Electronic Components |
| Product Category: | Diodes - Rectifiers - Single |
| Available Quantity: | 15010 Pieces |
| Unit Price: | Quote by Email |

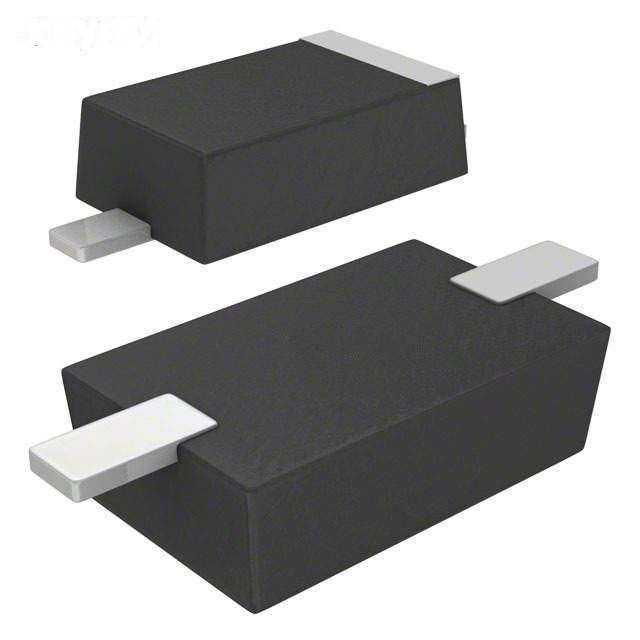

| Description: | DIODE SCHOTTKY 40V 3A MINI2 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DB2X41500L Datasheet |
| Internal Part Number | 898-DB2X41500L | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Junction Barrier Schottky Overview | |
| Featured Product | Wearables Technology Components | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | Schottky Diode | |
| Category | Discrete Semiconductor Products | |
| Family | Diodes - Rectifiers - Single | |
| Manufacturer | Panasonic Electronic Components | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Diode Type | Schottky | |
| Voltage - DC Reverse (Vr) (Max) | 40V | |
| Current - Average Rectified (Io) | 3A | |
| Voltage - Forward (Vf) (Max) @ If | 550mV @ 3A | |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | |
| Reverse Recovery Time (trr) | 25ns | |
| Current - Reverse Leakage @ Vr | 200µA @ 40V | |
| Capacitance @ Vr, F | 70pF @ 10V, 1MHz | |
| Mounting Type | Surface Mount | |
| Package / Case | SOD-123F | |
| Supplier Device Package | Mini2-F4-B | |
| Operating Temperature - Junction | 125°C (Max) | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DB2X41500L | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DB2X41500L is in stock for immediate shipping now. We are the distributor of Panasonic Electronic Components all series components. The condition of DB2X41500L is new and unused, you can buy DB2X41500L Panasonic Electronic Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DB2X41500L.
