| Manufacturer Part Number: | DDZ27ASF-7 |
|---|---|
| Manufacturer: | Diodes Incorporated |
| Product Category: | Diodes - Zener - Single |
| Available Quantity: | 11900 Pieces |
| Unit Price: | Quote by Email |
| Description: | Zener Diode 24.89V 500mW ±3% Surface Mount SOD-323F |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DDZ27ASF-7 Datasheet |
| Internal Part Number | 898-DDZ27ASF-7 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | RoHS Cert of Compliance | |
| Online Catalog | Surface Mount Precision Zener Diode | |
| Category | Discrete Semiconductor Products | |
| Family | Diodes - Zener - Single | |
| Manufacturer | Diodes Incorporated | |
| Series | - | |
| Packaging | Cut Tape (CT) | |
| Part Status | Active | |
| Voltage - Zener (Nom) (Vz) | 24.89V | |
| Tolerance | ±3% | |
| Power - Max | 500mW | |
| Impedance (Max) (Zzt) | 70 Ohm | |
| Current - Reverse Leakage @ Vr | 70nA @ 23V | |
| Voltage - Forward (Vf) (Max) @ If | 900mV @ 10mA | |
| Operating Temperature | -65°C ~ 150°C | |
| Mounting Type | Surface Mount | |

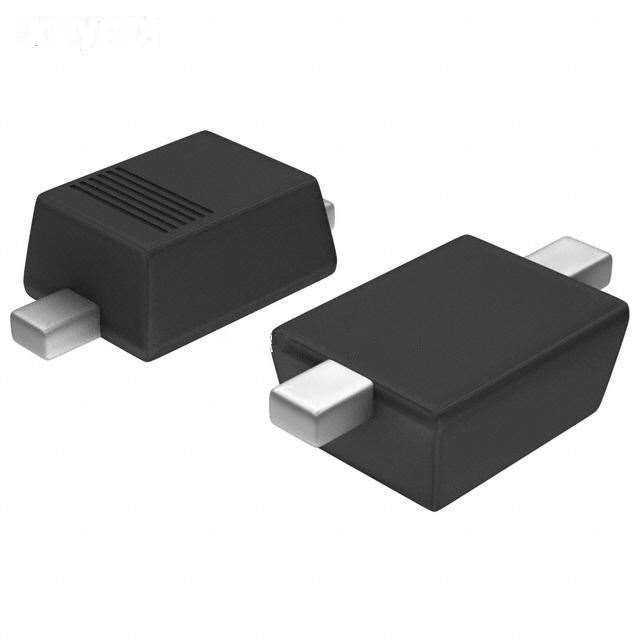

| Package / Case | SC-90, SOD-323F | |
| Supplier Device Package | SOD-323F | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DDZ27ASF-7 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DDZ27ASF-7 is in stock for immediate shipping now. We are the distributor of Diodes Incorporated all series components. The condition of DDZ27ASF-7 is new and unused, you can buy DDZ27ASF-7 Diodes Incorporated with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DDZ27ASF-7.
