| Manufacturer Part Number: | DG9453EN-T1-E4 |
|---|---|
| Manufacturer: | Vishay Siliconix |
| Product Category: | Interface - Analog Switches, Multiplexers, Demultiplexers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 3 Circuit IC Switch 2:1 105 Ohm 16-miniQFN (1.8x2.6) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DG9453EN-T1-E4 Datasheet |
| Internal Part Number | 898-DG9453EN-T1-E4 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Design/Specification | SIL-104-2014-Rev-0 15/Dec/2014 | |
| Category | Integrated Circuits (ICs) | |
| Family | Interface - Analog Switches, Multiplexers, Demultiplexers | |
| Manufacturer | Vishay Siliconix | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| Switch Circuit | SPDT | |
| Multiplexer/Demultiplexer Circuit | 2:1 | |
| Number of Circuits | 3 | |
| On-State Resistance (Max) | 105 Ohm | |
| Channel-to-Channel Matching (ΔRon) | 4 Ohm | |
| Voltage - Supply, Single (V+) | 2.7 V ~ 12 V | |
| Voltage - Supply, Dual (V±) | ±2.5 V ~ 5 V | |
| Switch Time (Ton, Toff) (Max) | 185ns, 130ns | |
| -3db Bandwidth | 270MHz | |
| Charge Injection | 0.79pC | |
| Channel Capacitance (CS(off), CD(off)) | 1pF, 9pF | |
| Current - Leakage (IS(off)) (Max) | 1nA | |
| Crosstalk | -90dB @ 100kHz | |
| Operating Temperature | -40°C ~ 125°C (TA) | |
| Package / Case | 16-WFQFN | |

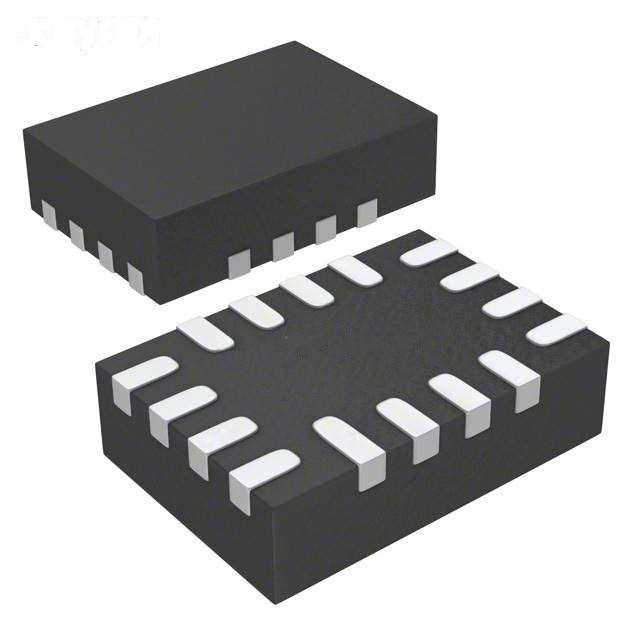

| Supplier Device Package | 16-miniQFN (1.8x2.6) | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DG9453EN-T1-E4 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DG9453EN-T1-E4 is in stock for immediate shipping now. We are the distributor of Vishay Siliconix all series components. The condition of DG9453EN-T1-E4 is new and unused, you can buy DG9453EN-T1-E4 Vishay Siliconix with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DG9453EN-T1-E4.
