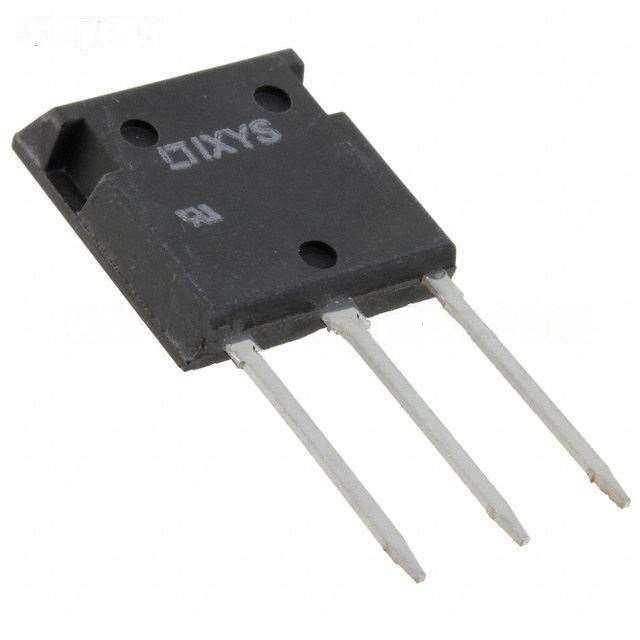

| Manufacturer Part Number: | DHH55-36N1F |
|---|---|
| Manufacturer: | IXYS |
| Product Category: | Diodes - Rectifiers - Arrays |
| Available Quantity: | 9065 Pieces |
| Unit Price: | Quote by Email |
| Description: | Diode Array 1 Pair Series Connection Standard 1800V (1.8kV) 60A Through Hole i4-Pac™-3 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DHH55-36N1F Datasheet |
| Internal Part Number | 898-DHH55-36N1F | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | Diode Array | |
| Category | Discrete Semiconductor Products | |
| Family | Diodes - Rectifiers - Arrays | |
| Manufacturer | IXYS | |
| Series | - | |
| Packaging | Tube | |
| Part Status | Active | |
| Diode Configuration | 1 Pair Series Connection | |
| Diode Type | Standard | |
| Voltage - DC Reverse (Vr) (Max) | 1800V (1.8kV) | |
| Current - Average Rectified (Io) (per Diode) | 60A | |
| Voltage - Forward (Vf) (Max) @ If | 2.04V @ 60A | |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | |
| Reverse Recovery Time (trr) | 230ns | |
| Current - Reverse Leakage @ Vr | 200µA @ 1800V | |
| Mounting Type | Through Hole | |
| Package / Case | i4-Pac™-3 | |
| Supplier Device Package | i4-PAC™ | |
| Standard Package | 25 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DHH55-36N1F | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DHH55-36N1F is in stock for immediate shipping now. We are the distributor of IXYS all series components. The condition of DHH55-36N1F is new and unused, you can buy DHH55-36N1F IXYS with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DHH55-36N1F.
