Manufacturer Part Number: | DL4748A-TP |
---|---|
Manufacturer: | Micro Commercial Co |
Product Category: | Diodes - Zener - Single |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |

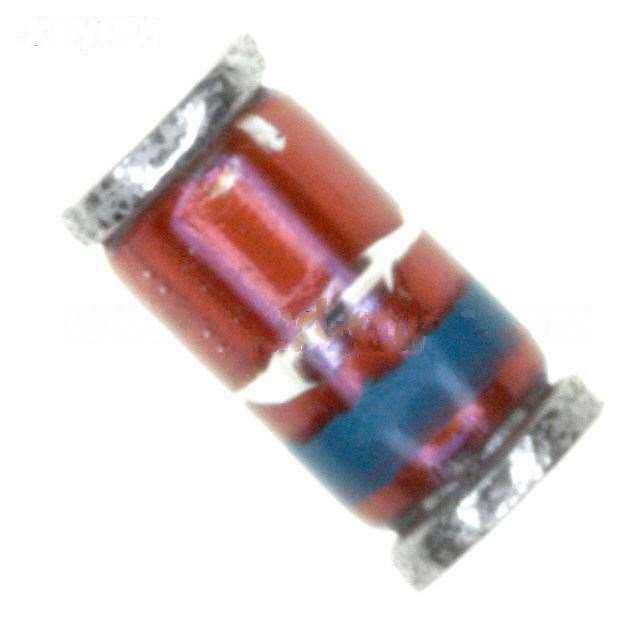

Description: | Zener Diode 22V 1W ±5% Surface Mount MELF |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | DL4748A-TP Datasheet |
Internal Part Number | 898-DL4748A-TP | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Diode Handling and Mounting | |
Online Catalog | 1W Zener Diode 3.3 to 75V | |
Category | Discrete Semiconductor Products | |
Family | Diodes - Zener - Single | |
Manufacturer | Micro Commercial Co | |
Series | - | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Voltage - Zener (Nom) (Vz) | 22V | |
Tolerance | ±5% | |
Power - Max | 1W | |
Impedance (Max) (Zzt) | 23 Ohm | |
Current - Reverse Leakage @ Vr | 5µA @ 16.7V | |
Voltage - Forward (Vf) (Max) @ If | 1.2V @ 200mA | |
Operating Temperature | -65°C ~ 175°C | |
Mounting Type | Surface Mount | |
Package / Case | DO-213AB, MELF | |
Supplier Device Package | MELF | |
Standard Package | 5,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | DL4748A-TP | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
DL4748A-TP is in stock for immediate shipping now. We are the distributor of Micro Commercial Co all series components. The condition of DL4748A-TP is new and unused, you can buy DL4748A-TP Micro Commercial Co with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DL4748A-TP.
