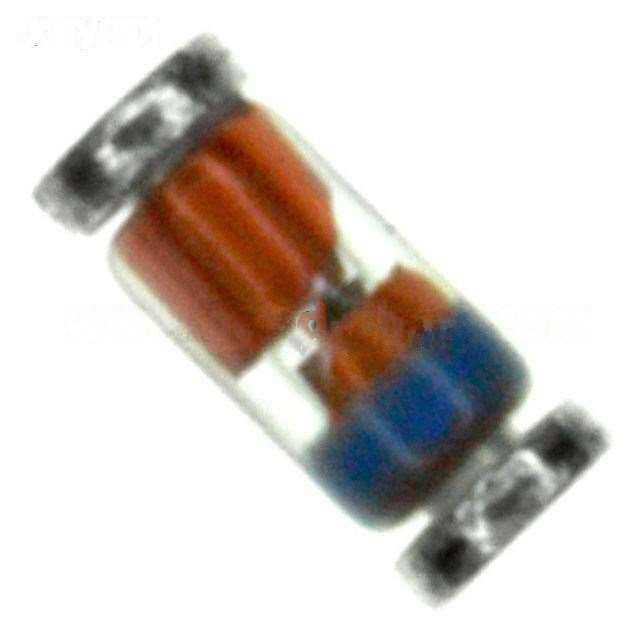

DL5232B-TP

DL5232B-TP
Manufacturer Part Number:DL5232B-TP
Manufacturer:
Product Category:Diodes - Zener - Single
Available Quantity:14246 Pieces
Unit Price:Quote by Email
Description:Zener Diode 5.6V 500mW ±5% Surface Mount Mini MELF
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: DL5232B-TP Datasheet
DL5232B-TP´s Parameters
Internal Part Number898-DL5232B-TP
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
Product Training ModulesDiode Handling and Mounting
Online Catalog 500mW Zener Diode 2.4 to 75V
CategoryDiscrete Semiconductor Products
FamilyDiodes - Zener - Single
ManufacturerMicro Commercial Co
Series-
PackagingDigi-Reel®
Part StatusActive
Voltage - Zener (Nom) (Vz)5.6V
Tolerance±5%
Power - Max500mW
Impedance (Max) (Zzt)11 Ohm
Current - Reverse Leakage @ Vr5µA @ 3V
Voltage - Forward (Vf) (Max) @ If1.1V @ 200mA
Operating Temperature-65°C ~ 175°C
Mounting TypeSurface Mount
Package / CaseDO-213AC, MINI-MELF, SOD-80
Supplier Device PackageMini MELF
Standard Package 1
Weight0.001 KG
ApplicationEmail for details
Replacement PartDL5232B-TP
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

DL5232B-TP is in stock for immediate shipping now. We are the distributor of Micro Commercial Co all series components. The condition of DL5232B-TP is new and unused, you can buy DL5232B-TP Micro Commercial Co with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for DL5232B-TP.
