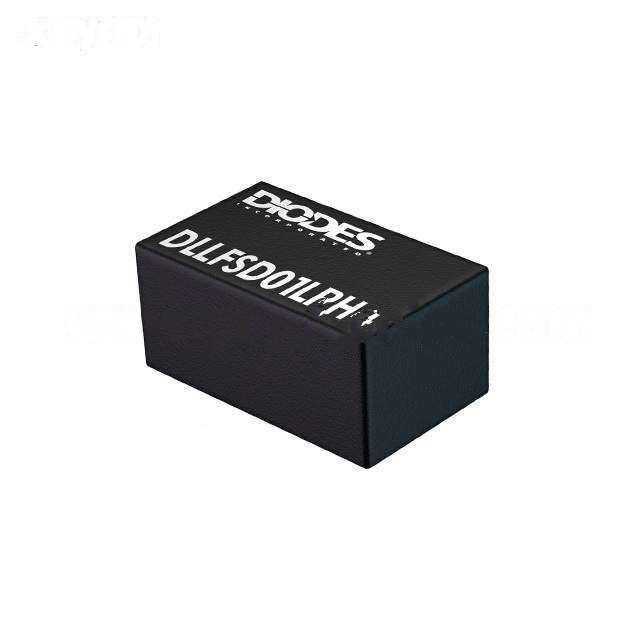

| Manufacturer Part Number: | DLLFSD01LPH4-7B |
|---|---|
| Manufacturer: | Diodes Incorporated |
| Product Category: | Diodes - Rectifiers - Single |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | DIODE FS SW 80V 100MA X2DFN10062 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DLLFSD01LPH4-7B Datasheet |
| Internal Part Number | 898-DLLFSD01LPH4-7B | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | DLLFSD01 Switching Diodes | |
| Online Catalog | Standard Diode | |
| Category | Discrete Semiconductor Products | |
| Family | Diodes - Rectifiers - Single | |
| Manufacturer | Diodes Incorporated | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Diode Type | Standard | |
| Voltage - DC Reverse (Vr) (Max) | 80V | |
| Current - Average Rectified (Io) | 100mA | |
| Voltage - Forward (Vf) (Max) @ If | 1.2V @ 100mA | |
| Speed | Small Signal =< 200mA (Io), Any Speed | |
| Reverse Recovery Time (trr) | 4ns | |
| Current - Reverse Leakage @ Vr | 200nA @ 80V | |
| Capacitance @ Vr, F | 2.5pF @ 0V, 1MHz | |
| Mounting Type | Surface Mount | |
| Package / Case | 2-XFDFN | |
| Supplier Device Package | X2-DFN1006-2 | |
| Operating Temperature - Junction | -65°C ~ 150°C | |
| Standard Package | 10,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DLLFSD01LPH4-7B | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DLLFSD01LPH4-7B is in stock for immediate shipping now. We are the distributor of Diodes Incorporated all series components. The condition of DLLFSD01LPH4-7B is new and unused, you can buy DLLFSD01LPH4-7B Diodes Incorporated with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DLLFSD01LPH4-7B.
