| Manufacturer Part Number: | DNA30E2200PC-TUB |
|---|---|
| Manufacturer: | IXYS |
| Product Category: | Diodes - Rectifiers - Single |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Diode Standard 2200V (2.2kV) 30A Surface Mount TO-263 (D²Pak) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DNA30E2200PC-TUB Datasheet |
| Internal Part Number | 898-DNA30E2200PC-TUB | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Discrete Semiconductor Products | |
| Family | Diodes - Rectifiers - Single | |
| Manufacturer | IXYS | |
| Series | - | |
| Packaging | Tube | |
| Part Status | Active | |
| Diode Type | Standard | |
| Voltage - DC Reverse (Vr) (Max) | 2200V (2.2kV) | |
| Current - Average Rectified (Io) | 30A | |
| Voltage - Forward (Vf) (Max) @ If | 1.26V @ 30A | |
| Speed | Standard Recovery >500ns, > 200mA (Io) | |
| Reverse Recovery Time (trr) | - | |
| Current - Reverse Leakage @ Vr | 40µA @ 2200V | |
| Capacitance @ Vr, F | 7pF @ 700V, 1MHz | |
| Mounting Type | Surface Mount | |

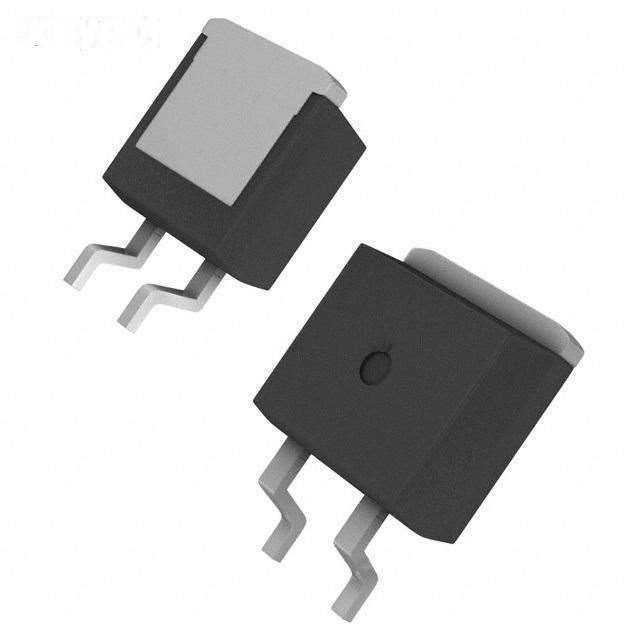

| Package / Case | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | |
| Supplier Device Package | TO-263 (D²Pak) | |
| Operating Temperature - Junction | -55°C ~ 175°C | |
| Standard Package | 50 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DNA30E2200PC-TUB | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DNA30E2200PC-TUB is in stock for immediate shipping now. We are the distributor of IXYS all series components. The condition of DNA30E2200PC-TUB is new and unused, you can buy DNA30E2200PC-TUB IXYS with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DNA30E2200PC-TUB.
