Manufacturer Part Number: | DPG20C300PN |
---|---|
Manufacturer: | IXYS |
Product Category: | Diodes - Rectifiers - Arrays |
Available Quantity: | 9585 Pieces |
Unit Price: | Quote by Email |

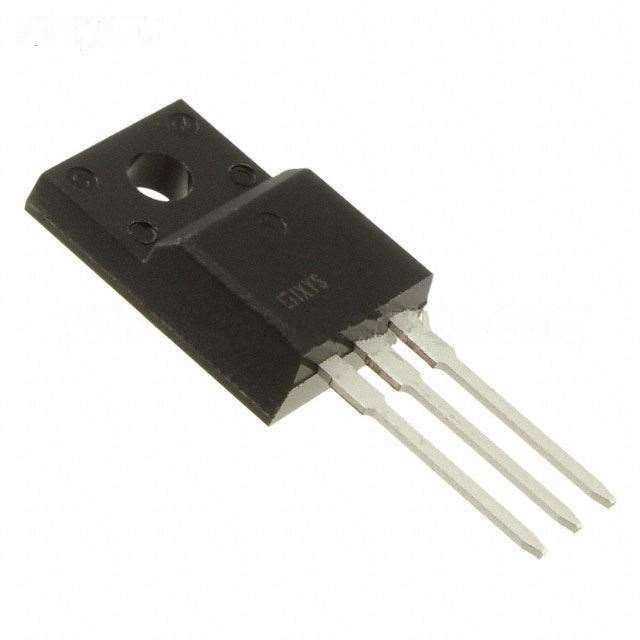

Description: | Diode Array 1 Pair Common Cathode Standard 300V 10A Through Hole TO-220-3 Full Pack, Isolated Tab |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | DPG20C300PN Datasheet |
Internal Part Number | 898-DPG20C300PN | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | Diode Array | |
Category | Discrete Semiconductor Products | |
Family | Diodes - Rectifiers - Arrays | |
Manufacturer | IXYS | |
Series | HiPerFRED²™ | |
Packaging | Tube | |
Part Status | Active | |
Diode Configuration | 1 Pair Common Cathode | |
Diode Type | Standard | |
Voltage - DC Reverse (Vr) (Max) | 300V | |
Current - Average Rectified (Io) (per Diode) | 10A | |
Voltage - Forward (Vf) (Max) @ If | 1.27V @ 10A | |
Speed | Fast Recovery =< 500ns, > 200mA (Io) | |
Reverse Recovery Time (trr) | 35ns | |
Current - Reverse Leakage @ Vr | 1µA @ 300V | |
Mounting Type | Through Hole | |
Package / Case | TO-220-3 Full Pack, Isolated Tab | |
Supplier Device Package | TO-220ABFP | |
Standard Package | 50 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | DPG20C300PN | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
DPG20C300PN is in stock for immediate shipping now. We are the distributor of IXYS all series components. The condition of DPG20C300PN is new and unused, you can buy DPG20C300PN IXYS with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DPG20C300PN.
