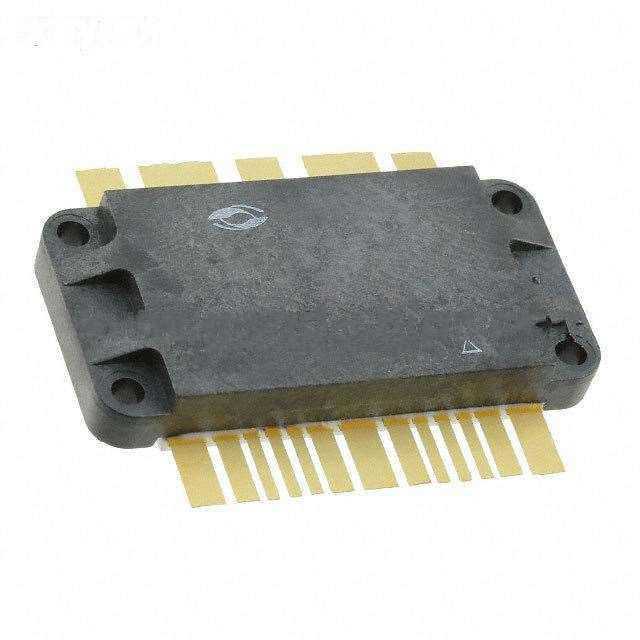

Manufacturer Part Number: | DRF1300 |
---|---|
Manufacturer: | Microsemi Corporation |
Product Category: | PMIC - Power Distribution Switches, Load Drivers |
Available Quantity: | 9018 Pieces |
Unit Price: | Quote by Email |
Description: | IC SWITCH PUSH PULL HYBRID |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | DRF1300 Datasheet |
Internal Part Number | 898-DRF1300 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | General Purpose | |
Category | Integrated Circuits (ICs) | |
Family | PMIC - Power Distribution Switches, Load Drivers | |
Manufacturer | Microsemi Corporation | |
Series | - | |
Packaging | Bulk | |
Part Status | Active | |
Switch Type | General Purpose | |
Number of Outputs | 2 | |
Ratio - Input:Output | 1:1 | |
Output Configuration | Low Side | |
Output Type | N-Channel | |
Interface | On/Off | |
Voltage - Load | 10 V ~ 15 V | |
Voltage - Supply (Vcc/Vdd) | - | |
Current - Output (Max) | 30A | |
Rds On (Typ) | 240 mOhm | |
Input Type | Inverting, Non-Inverting | |
Features | - | |
Fault Protection | - | |
Operating Temperature | - | |
Package / Case | 18-Module | |
Supplier Device Package | - | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | DRF1300 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
DRF1300 is in stock for immediate shipping now. We are the distributor of Microsemi Corporation all series components. The condition of DRF1300 is new and unused, you can buy DRF1300 Microsemi Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DRF1300.
