| Manufacturer Part Number: | EC3H02BA-TL-H |
|---|---|
| Manufacturer: | ON Semiconductor |
| Product Category: | Transistors - Bipolar (BJT) - RF |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | RF Transistor NPN 10V 70mA 7GHz 100mW Surface Mount 3-ECSP1006 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | EC3H02BA-TL-H Datasheet |
| Internal Part Number | 898-EC3H02BA-TL-H | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - Bipolar (BJT) - RF | |
| Manufacturer | ON Semiconductor | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| Transistor Type | NPN | |
| Voltage - Collector Emitter Breakdown (Max) | 10V | |
| Frequency - Transition | 7GHz | |
| Noise Figure (dB Typ @ f) | 1dB @ 1GHz | |
| Gain | 8.5dB | |
| Power - Max | 100mW | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 120 @ 20mA, 5V | |
| Current - Collector (Ic) (Max) | 70mA | |
| Mounting Type | Surface Mount | |

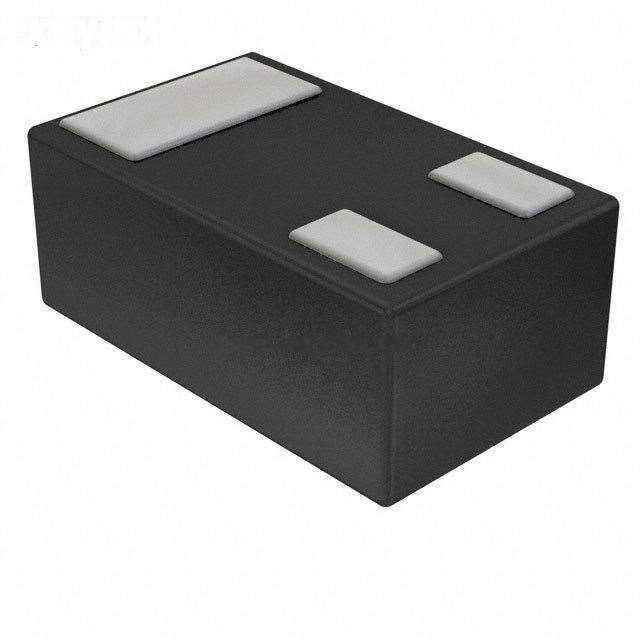

| Package / Case | 3-XFDFN | |
| Supplier Device Package | 3-ECSP1006 | |
| Standard Package | 8,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | EC3H02BA-TL-H | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
EC3H02BA-TL-H is in stock for immediate shipping now. We are the distributor of ON Semiconductor all series components. The condition of EC3H02BA-TL-H is new and unused, you can buy EC3H02BA-TL-H ON Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for EC3H02BA-TL-H.
