| Manufacturer Part Number: | EGP20D |
|---|---|
| Manufacturer: | Fairchild Semiconductor |
| Product Category: | Diodes - Rectifiers - Single |
| Available Quantity: | 13010 Pieces |
| Unit Price: | Quote by Email |
| Description: | DIODE GEN PURP 200V 2A DO204AC |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | EGP20D Datasheet |
| Internal Part Number | 898-EGP20D | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Design/Specification | Materials 23/Mar/2007 | |
| Online Catalog | Standard Diode | |
| Category | Discrete Semiconductor Products | |
| Family | Diodes - Rectifiers - Single | |
| Manufacturer | Fairchild Semiconductor | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Diode Type | Standard | |
| Voltage - DC Reverse (Vr) (Max) | 200V | |
| Current - Average Rectified (Io) | 2A | |
| Voltage - Forward (Vf) (Max) @ If | 950mV @ 2A | |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | |
| Reverse Recovery Time (trr) | 50ns | |
| Current - Reverse Leakage @ Vr | 5µA @ 200V | |
| Capacitance @ Vr, F | 70pF @ 4V, 1MHz | |
| Mounting Type | Through Hole | |

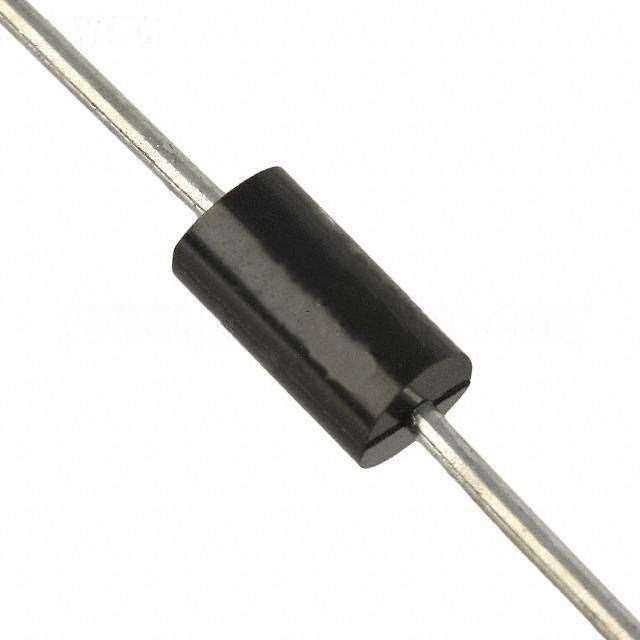

| Package / Case | DO-204AC, DO-15, Axial | |
| Supplier Device Package | DO-204AC (DO-15) | |
| Operating Temperature - Junction | -65°C ~ 150°C | |
| Standard Package | 4,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | EGP20D | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
EGP20D is in stock for immediate shipping now. We are the distributor of Fairchild Semiconductor all series components. The condition of EGP20D is new and unused, you can buy EGP20D Fairchild Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for EGP20D.
