.jpg)
| Manufacturer Part Number: | EPC2014 |
|---|---|
| Manufacturer: | EPC |
| Product Category: | Transistors - FETs, MOSFETs - Single |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | TRANS GAN 40V 10A BUMPED DIE |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | EPC2014 Datasheet |
| Internal Part Number | 898-EPC2014 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Mfg Application Notes | Second Generation eGaN® FETs Assembling eGaN® FETs Using eGaN® FETs | |
| Product Training Modules | Paralleling eGaN® FETs Driving eGaN FETs with LM5113 | |
| Video File | EPC eGaN FETs -- Another Geek Moment | DigiKey | |
| Featured Product | EPC2014 40 V eGaN® FET Demo Board EPC9101 EPC Low Voltage eGaN® FETs | |
| Reference Design Library | EPC9101: eGAN Buck, 1.2V @ 18A, 9 ~ 18V in | |
| PCN Design/Specification | EPC20xx Material 10/Apr/2013 | |
| PCN Assembly/Origin | EPC2yyy Family Process Change 12/Dec/2013 | |
| Online Catalog | N-Channel Standard FETs | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - FETs, MOSFETs - Single | |
| Manufacturer | EPC | |
| Series | eGaN® | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| FET Type | GaNFET N-Channel, Gallium Nitride | |
| FET Feature | Standard | |
| Drain to Source Voltage (Vdss) | 40V | |
| Current - Continuous Drain (Id) @ 25°C | 10A (Ta) | |
| Rds On (Max) @ Id, Vgs | 16 mOhm @ 5A, 5V | |
| Vgs(th) (Max) @ Id | 2.5V @ 2mA | |
| Gate Charge (Qg) @ Vgs | 2.8nC @ 5V | |
| Input Capacitance (Ciss) @ Vds | 325pF @ 20V | |
| Power - Max | - | |
| Operating Temperature | -40°C ~ 150°C (TJ) | |
| Mounting Type | Surface Mount | |
| Package / Case | Die | |

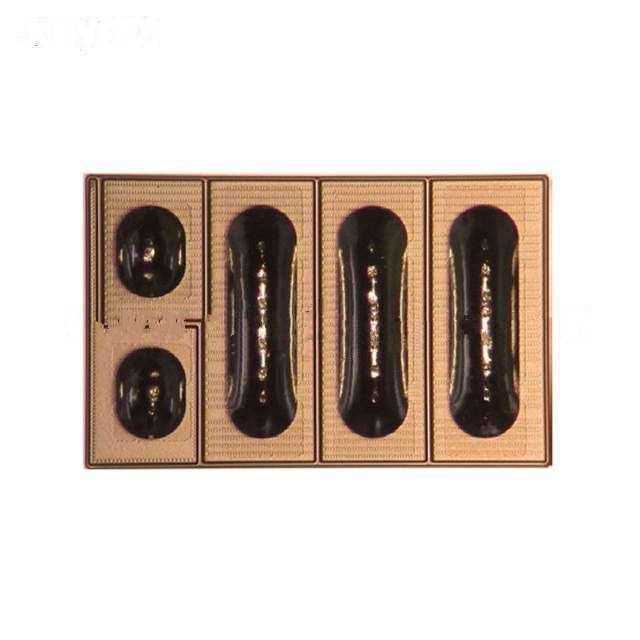

| Supplier Device Package | Die Outline (5-Solder Bar) | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | EPC2014 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
EPC2014 is in stock for immediate shipping now. We are the distributor of EPC all series components. The condition of EPC2014 is new and unused, you can buy EPC2014 EPC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for EPC2014.
