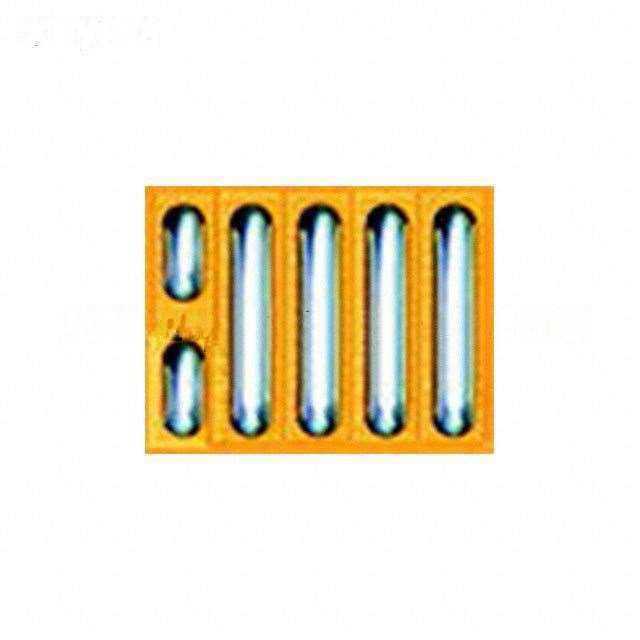

EPC2016C

EPC2016C
Manufacturer Part Number:EPC2016C
Manufacturer:
Product Category:Transistors - FETs, MOSFETs - Single
Available Quantity:9010 Pieces
Unit Price:Quote by Email
Description:TRANS GAN 100V 18A BUMPED DIE
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: EPC2016C Datasheet
EPC2016C´s Parameters
Internal Part Number898-EPC2016C
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
Mfg Application NotesAssembling eGaN® FETs
Die Attach Procedure
Die Removal Procedure
Using eGaN® FETs
Featured ProductEPC Low Voltage eGaN® FETs
Reference Design LibraryEPC9106: 250W(x2) @ 4O, ± 27V in, Class D
Online Catalog N-Channel Standard FETs
CategoryDiscrete Semiconductor Products
FamilyTransistors - FETs, MOSFETs - Single
ManufacturerEPC
SerieseGaN®
PackagingTape & Reel (TR)
Part StatusActive
FET TypeGaNFET N-Channel, Gallium Nitride
FET FeatureStandard
Drain to Source Voltage (Vdss)100V
Current - Continuous Drain (Id) @ 25°C18A (Ta)
Rds On (Max) @ Id, Vgs16 mOhm @ 11A, 5V
Vgs(th) (Max) @ Id2.5V @ 3mA
Gate Charge (Qg) @ Vgs4.5nC @ 5V
Input Capacitance (Ciss) @ Vds420pF @ 50V
Power - Max-
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / CaseDie
Supplier Device PackageDie
Standard Package 2,500
Weight0.001 KG
ApplicationEmail for details
Replacement PartEPC2016C
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

EPC2016C is in stock for immediate shipping now. We are the distributor of EPC all series components. The condition of EPC2016C is new and unused, you can buy EPC2016C EPC with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for EPC2016C.
