| Manufacturer Part Number: | EPC2105ENG |
|---|---|
| Manufacturer: | EPC |
| Product Category: | Transistors - FETs, MOSFETs - Arrays |
| Available Quantity: | 9190 Pieces |
| Unit Price: | Quote by Email |

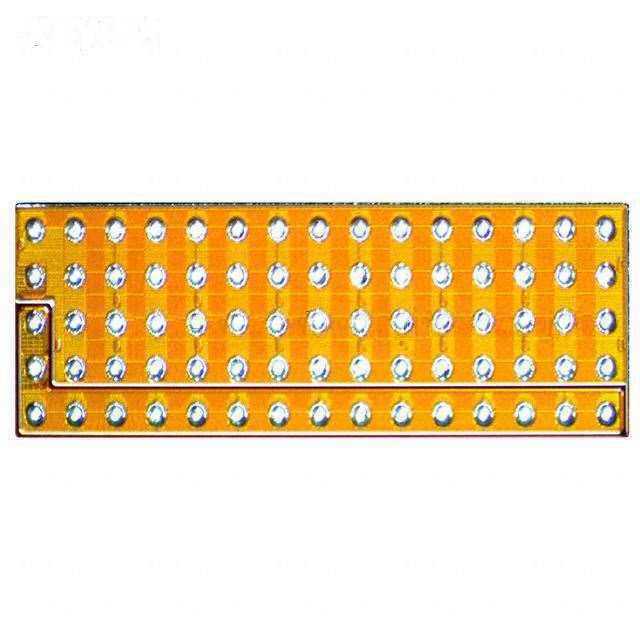

| Description: | TRANS GAN 2N-CH 80V BUMPED DIE |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | EPC2105ENG Datasheet |
| Internal Part Number | 898-EPC2105ENG | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Mfg Application Notes | GaN Integration for Higher DC-DC Efficiency and Power Density | |
| Product Training Modules | eGaN® Integrated GaN Power | |
| Featured Product | EPC - EPC9037/EPC9041 Development Boards | |
| Online Catalog | N-Channel Logic Level Gate FETs | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - FETs, MOSFETs - Arrays | |
| Manufacturer | EPC | |
| Series | eGaN® | |
| Packaging | Bulk | |
| Part Status | Active | |
| FET Type | 2 N-Channel (Half Bridge) | |
| FET Feature | GaNFET (Gallium Nitride) | |
| Drain to Source Voltage (Vdss) | 80V | |
| Current - Continuous Drain (Id) @ 25°C | 9.5A, 38A | |
| Rds On (Max) @ Id, Vgs | 14.5 mOhm @ 20A, 5V | |
| Vgs(th) (Max) @ Id | 2.5V @ 2.5mA | |
| Gate Charge (Qg) @ Vgs | 2.5nC @ 5V | |
| Input Capacitance (Ciss) @ Vds | 300pF @ 40V | |
| Power - Max | - | |
| Operating Temperature | -40°C ~ 150°C (TJ) | |
| Mounting Type | Surface Mount | |
| Package / Case | Die | |
| Supplier Device Package | Die | |
| Standard Package | 10 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | EPC2105ENG | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
EPC2105ENG is in stock for immediate shipping now. We are the distributor of EPC all series components. The condition of EPC2105ENG is new and unused, you can buy EPC2105ENG EPC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for EPC2105ENG.
