| Manufacturer Part Number: | ES1G |
|---|---|
| Manufacturer: | Fairchild Semiconductor |
| Product Category: | Diodes - Rectifiers - Single |
| Available Quantity: | 16510 Pieces |
| Unit Price: | Quote by Email |
| Description: | DIODE GEN PURP 400V 1A SMA |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ES1G Datasheet |
| Internal Part Number | 898-ES1G | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Assembly/Origin | Additional Manufacturing Source 01/Oct/2014 | |
| Online Catalog | Standard Diode | |
| Category | Discrete Semiconductor Products | |
| Family | Diodes - Rectifiers - Single | |
| Manufacturer | Fairchild Semiconductor | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Diode Type | Standard | |
| Voltage - DC Reverse (Vr) (Max) | 400V | |
| Current - Average Rectified (Io) | 1A | |
| Voltage - Forward (Vf) (Max) @ If | 1.3V @ 1A | |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | |
| Reverse Recovery Time (trr) | 35ns | |
| Current - Reverse Leakage @ Vr | 5µA @ 400V | |
| Capacitance @ Vr, F | 10pF @ 4V, 1MHz | |
| Mounting Type | Surface Mount | |

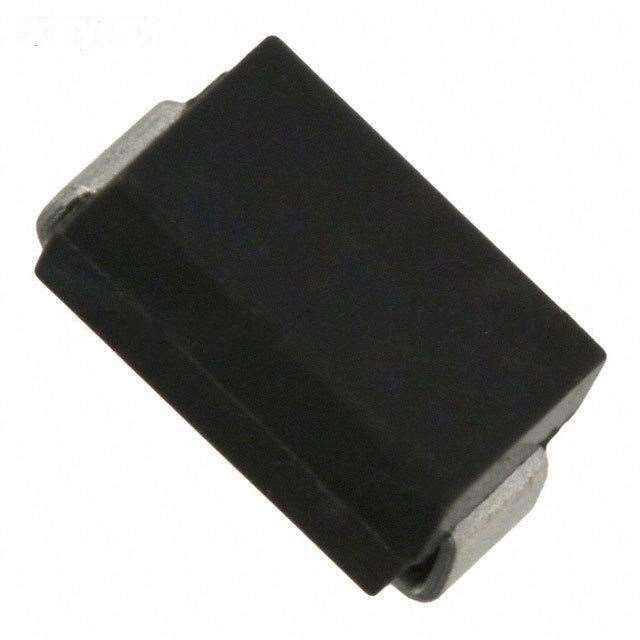

| Package / Case | DO-214AC, SMA | |
| Supplier Device Package | SMA (DO-214AC) | |
| Operating Temperature - Junction | 150°C (Max) | |
| Standard Package | 7,500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ES1G | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ES1G is in stock for immediate shipping now. We are the distributor of Fairchild Semiconductor all series components. The condition of ES1G is new and unused, you can buy ES1G Fairchild Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ES1G.
