| Manufacturer Part Number: | FAN5341UMPX |
|---|---|
| Manufacturer: | Fairchild Semiconductor |
| Product Category: | PMIC - LED Drivers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | LED Driver IC 1 Output DC DC Regulator Step-Up (Boost) Single-Wire Dimming 25mA 6-UMLP (2x2) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | FAN5341UMPX Datasheet |
| Internal Part Number | 898-FAN5341UMPX | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Lighting Product Selector | |
| Featured Product | Cloud Systems Computing Point-of-Load (POL) Regulators | |
| PCN Design/Specification | Marking Content 19/Nov/2013 | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - LED Drivers | |
| Manufacturer | Fairchild Semiconductor | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | DC DC Regulator | |
| Topology | Step-Up (Boost) | |
| Internal Switch(s) | Yes | |
| Number of Outputs | 1 | |
| Voltage - Supply (Min) | 2.7V | |
| Voltage - Supply (Max) | 5.5V | |
| Voltage - Output | 6.2 V ~ 17.5 V | |
| Current - Output / Channel | 25mA | |
| Frequency | 1.2MHz | |
| Dimming | Single-Wire | |
| Applications | Backlight | |
| Operating Temperature | -40°C ~ 85°C (TA) | |
| Mounting Type | Surface Mount | |
| Package / Case | 6-UDFN Exposed Pad | |

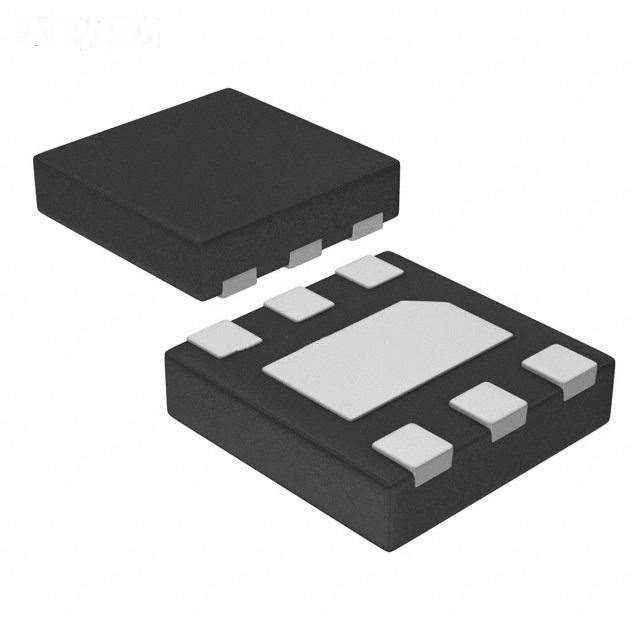

| Supplier Device Package | 6-UMLP (2x2) | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | FAN5341UMPX | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
FAN5341UMPX is in stock for immediate shipping now. We are the distributor of Fairchild Semiconductor all series components. The condition of FAN5341UMPX is new and unused, you can buy FAN5341UMPX Fairchild Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for FAN5341UMPX.
