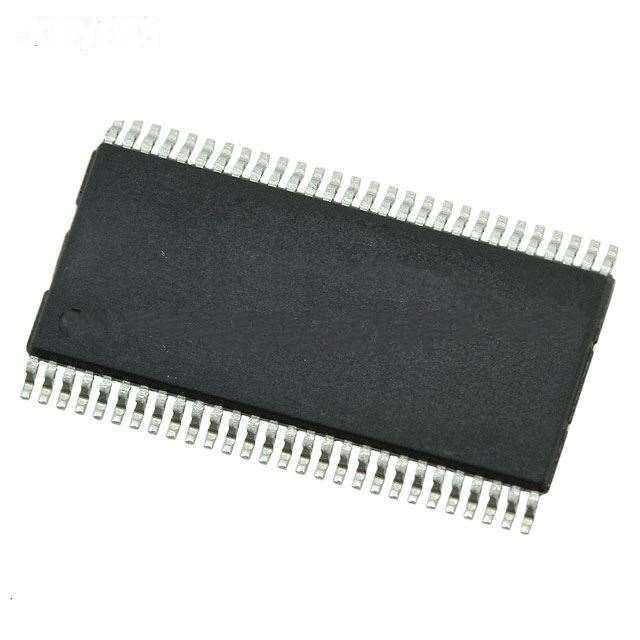

| Manufacturer Part Number: | FAN8741MTFX |
|---|---|
| Manufacturer: | Fairchild Semiconductor |
| Product Category: | PMIC - Motor Drivers, Controllers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Motor Driver DMOS Parallel 56-TSSOP-EP |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | FAN8741MTFX Datasheet |
| Internal Part Number | 898-FAN8741MTFX | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Motor Drivers, Controllers | |
| Manufacturer | Fairchild Semiconductor | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| Motor Type - Stepper | - | |
| Motor Type - AC, DC | Brushless DC (BLDC) | |
| Function | Driver - Fully Integrated, Control and Power Stage | |
| Output Configuration | Half Bridge (7) | |
| Interface | Parallel | |
| Technology | DMOS | |
| Step Resolution | - | |
| Applications | Media Player | |
| Current - Output | 2A, 1A | |
| Voltage - Supply | 4.5 V ~ 13.2 V | |
| Voltage - Load | 4.5 V ~ 13.2 V | |
| Operating Temperature | -20°C ~ 75°C (TA) | |
| Mounting Type | Surface Mount | |
| Package / Case | 56-BSSOP (0.240", 6.10mm Width) Exposed Pad | |
| Supplier Device Package | 56-TSSOP-EP | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | FAN8741MTFX | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
FAN8741MTFX is in stock for immediate shipping now. We are the distributor of Fairchild Semiconductor all series components. The condition of FAN8741MTFX is new and unused, you can buy FAN8741MTFX Fairchild Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for FAN8741MTFX.
