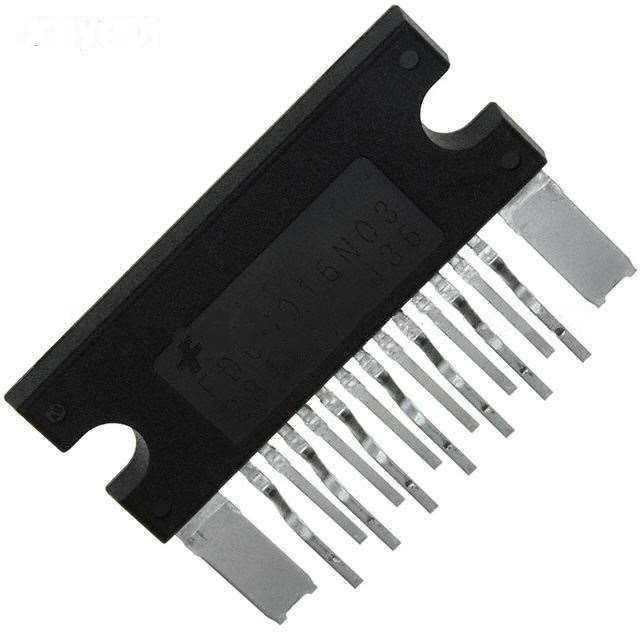

| Manufacturer Part Number: | FD6M016N03 |
|---|---|
| Manufacturer: | Fairchild Semiconductor |
| Product Category: | Transistors - FETs, MOSFETs - Arrays |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | MOSFET 2N-CH 30V 80A EPM15 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | FD6M016N03 Datasheet |
| Internal Part Number | 898-FD6M016N03 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - FETs, MOSFETs - Arrays | |
| Manufacturer | Fairchild Semiconductor | |
| Series | Power-SPM™ | |
| Packaging | Tube | |
| Part Status | Obsolete | |
| FET Type | 2 N-Channel (Dual) | |
| FET Feature | Standard | |
| Drain to Source Voltage (Vdss) | 30V | |
| Current - Continuous Drain (Id) @ 25°C | 80A | |
| Rds On (Max) @ Id, Vgs | 1.6 mOhm @ 40A, 10V | |
| Vgs(th) (Max) @ Id | 3V @ 250µA | |
| Gate Charge (Qg) @ Vgs | 295nC @ 10V | |
| Input Capacitance (Ciss) @ Vds | 11535pF @ 15V | |
| Power - Max | - | |
| Operating Temperature | -40°C ~ 150°C (TJ) | |
| Mounting Type | Through Hole | |
| Package / Case | EPM15 | |
| Supplier Device Package | EPM15 | |
| Standard Package | 19 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | FD6M016N03 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
FD6M016N03 is in stock for immediate shipping now. We are the distributor of Fairchild Semiconductor all series components. The condition of FD6M016N03 is new and unused, you can buy FD6M016N03 Fairchild Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for FD6M016N03.
