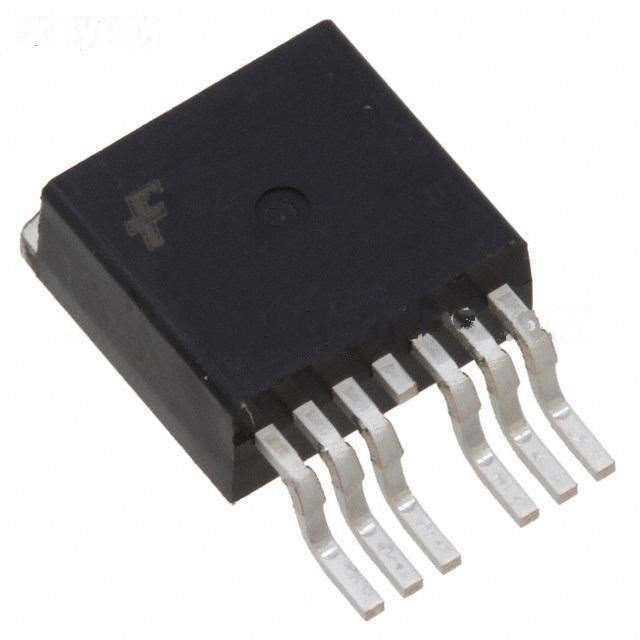

| Manufacturer Part Number: | FDB016N04AL7 |
|---|---|
| Manufacturer: | Fairchild Semiconductor |
| Product Category: | Transistors - FETs, MOSFETs - Single |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | MOSFET N-CH 40V 160A D2PAK-7 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | FDB016N04AL7 Datasheet |
| Internal Part Number | 898-FDB016N04AL7 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Design/Specification | Description Chg 01/Apr/2016 | |
| PCN Packaging | Tape and Box/Reel Barcode Update 07/Aug/2014 | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - FETs, MOSFETs - Single | |
| Manufacturer | Fairchild Semiconductor | |
| Series | PowerTrench® | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| FET Type | MOSFET N-Channel, Metal Oxide | |
| FET Feature | Standard | |
| Drain to Source Voltage (Vdss) | 40V | |
| Current - Continuous Drain (Id) @ 25°C | 160A (Tc) | |
| Rds On (Max) @ Id, Vgs | 1.6 mOhm @ 80A, 10V | |
| Vgs(th) (Max) @ Id | 3V @ 250µA | |
| Gate Charge (Qg) @ Vgs | 167nC @ 10V | |
| Input Capacitance (Ciss) @ Vds | 11600pF @ 25V | |
| Power - Max | 283W | |
| Operating Temperature | -55°C ~ 175°C (TJ) | |
| Mounting Type | Surface Mount | |
| Package / Case | TO-263-7, D²Pak (6 Leads + Tab) | |
| Supplier Device Package | D²PAK (TO-263) | |
| Standard Package | 800 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | FDB016N04AL7 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
FDB016N04AL7 is in stock for immediate shipping now. We are the distributor of Fairchild Semiconductor all series components. The condition of FDB016N04AL7 is new and unused, you can buy FDB016N04AL7 Fairchild Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for FDB016N04AL7.
