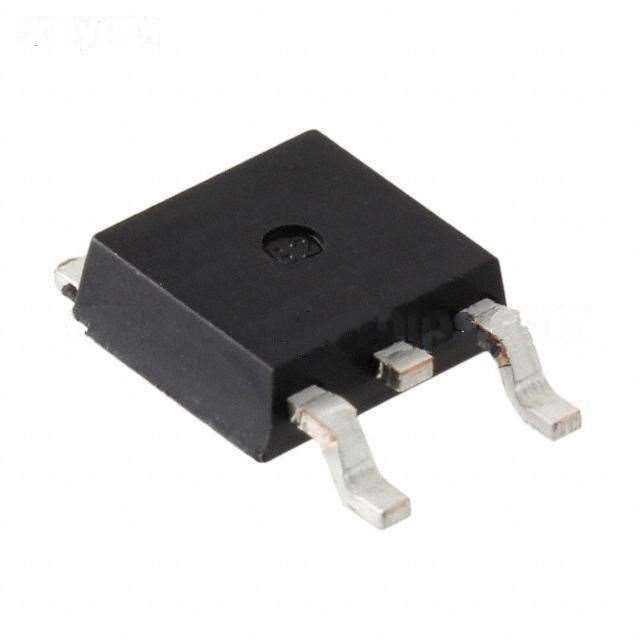

| Manufacturer Part Number: | FDB38N30U |
|---|---|
| Manufacturer: | Fairchild Semiconductor |
| Product Category: | Transistors - FETs, MOSFETs - Single |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | MOSFET N CH 300V 38A D2PAK |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | FDB38N30U Datasheet |
| Internal Part Number | 898-FDB38N30U | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Design/Specification | Description Chg 01/Apr/2016 | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - FETs, MOSFETs - Single | |
| Manufacturer | Fairchild Semiconductor | |
| Series | UniFET™ | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| FET Type | MOSFET N-Channel, Metal Oxide | |
| FET Feature | Standard | |
| Drain to Source Voltage (Vdss) | 300V | |
| Current - Continuous Drain (Id) @ 25°C | 38A (Tc) | |
| Rds On (Max) @ Id, Vgs | 120 mOhm @ 19A, 10V | |
| Vgs(th) (Max) @ Id | 5V @ 250µA | |
| Gate Charge (Qg) @ Vgs | 73nC @ 10V | |
| Input Capacitance (Ciss) @ Vds | 3340pF @ 25V | |
| Power - Max | 313W | |
| Operating Temperature | -55°C ~ 150°C (TJ) | |
| Mounting Type | Surface Mount | |
| Package / Case | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | |
| Supplier Device Package | TO-263 (D²Pak) | |
| Standard Package | 800 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | FDB38N30U | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
FDB38N30U is in stock for immediate shipping now. We are the distributor of Fairchild Semiconductor all series components. The condition of FDB38N30U is new and unused, you can buy FDB38N30U Fairchild Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for FDB38N30U.
