| Manufacturer Part Number: | FDC6036P |
|---|---|
| Manufacturer: | Fairchild Semiconductor |
| Product Category: | Transistors - FETs, MOSFETs - Arrays |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | MOSFET 2P-CH 20V 5A 6SSOT |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | FDC6036P Datasheet |
| Internal Part Number | 898-FDC6036P | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Design/Specification | Mold Compound 27/March/2008 | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - FETs, MOSFETs - Arrays | |
| Manufacturer | Fairchild Semiconductor | |
| Series | PowerTrench® | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| FET Type | 2 P-Channel (Dual) | |
| FET Feature | Logic Level Gate | |
| Drain to Source Voltage (Vdss) | 20V | |
| Current - Continuous Drain (Id) @ 25°C | 5A | |
| Rds On (Max) @ Id, Vgs | 44 mOhm @ 5A, 4.5V | |
| Vgs(th) (Max) @ Id | 1.5V @ 250µA | |
| Gate Charge (Qg) @ Vgs | 14nC @ 4.5V | |
| Input Capacitance (Ciss) @ Vds | 992pF @ 10V | |
| Power - Max | 900mW | |
| Operating Temperature | -55°C ~ 150°C (TJ) | |
| Mounting Type | Surface Mount | |

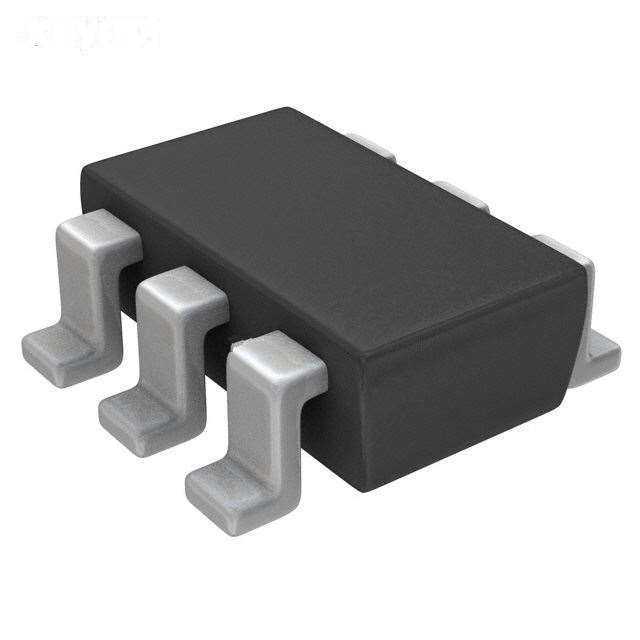

| Package / Case | 6-SSOT Flat-lead, SuperSOT™-6 FLMP | |
| Supplier Device Package | SuperSOT™-6 | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | FDC6036P | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
FDC6036P is in stock for immediate shipping now. We are the distributor of Fairchild Semiconductor all series components. The condition of FDC6036P is new and unused, you can buy FDC6036P Fairchild Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for FDC6036P.
