| Manufacturer Part Number: | FDFME2P823ZT |
|---|---|
| Manufacturer: | Fairchild Semiconductor |
| Product Category: | Transistors - FETs, MOSFETs - Single |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | MOSFET P-CH 20V 2.6A 6MICROFET |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | FDFME2P823ZT Datasheet |
| Internal Part Number | 898-FDFME2P823ZT | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Design/Specification | Marking Content 19/Nov/2013 | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - FETs, MOSFETs - Single | |
| Manufacturer | Fairchild Semiconductor | |
| Series | PowerTrench® | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| FET Type | MOSFET P-Channel, Metal Oxide | |
| FET Feature | Diode (Isolated) | |
| Drain to Source Voltage (Vdss) | 20V | |
| Current - Continuous Drain (Id) @ 25°C | 2.6A (Ta) | |
| Rds On (Max) @ Id, Vgs | 142 mOhm @ 2.3A, 4.5V | |
| Vgs(th) (Max) @ Id | 1V @ 250µA | |
| Gate Charge (Qg) @ Vgs | 7.7nC @ 4.5V | |
| Input Capacitance (Ciss) @ Vds | 405pF @ 10V | |
| Power - Max | 600mW | |
| Operating Temperature | -55°C ~ 150°C (TJ) | |
| Mounting Type | Surface Mount | |

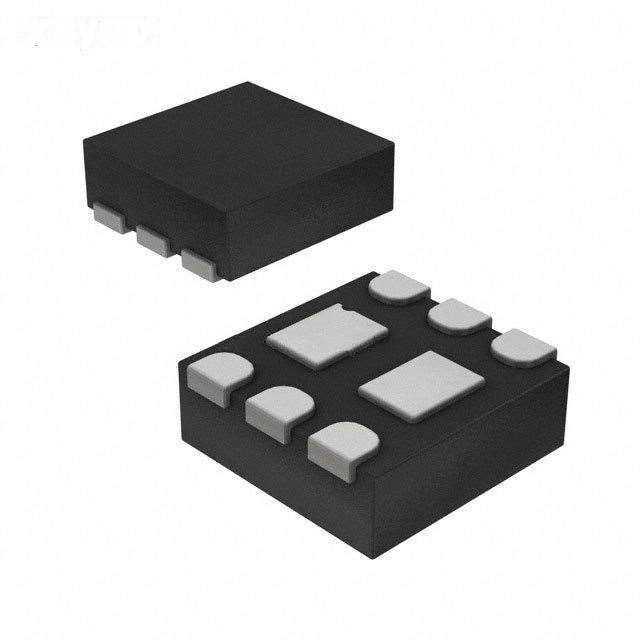

| Package / Case | 6-UMLP, 6-MicroFET™ | |
| Supplier Device Package | 6-MicroFET (1.6x1.6) | |
| Standard Package | 5,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | FDFME2P823ZT | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
FDFME2P823ZT is in stock for immediate shipping now. We are the distributor of Fairchild Semiconductor all series components. The condition of FDFME2P823ZT is new and unused, you can buy FDFME2P823ZT Fairchild Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for FDFME2P823ZT.
