| Manufacturer Part Number: | FDMA7628 |
|---|---|
| Manufacturer: | Fairchild Semiconductor |
| Product Category: | Transistors - FETs, MOSFETs - Single |
| Available Quantity: | 15010 Pieces |
| Unit Price: | Quote by Email |
| Description: | MOSFET N-CH 20V 6QFN |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | FDMA7628 Datasheet |
| Internal Part Number | 898-FDMA7628 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Design/Specification | Marking Content 19/Nov/2013 Design Change 03/Aug/2015 | |
| Online Catalog | N-Channel Logic Level Gate FETs | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - FETs, MOSFETs - Single | |
| Manufacturer | Fairchild Semiconductor | |
| Series | PowerTrench® | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| FET Type | MOSFET N-Channel, Metal Oxide | |
| FET Feature | Standard | |
| Drain to Source Voltage (Vdss) | 20V | |
| Current - Continuous Drain (Id) @ 25°C | 9.4A (Ta) | |
| Rds On (Max) @ Id, Vgs | 14.5 mOhm @ 9.4A, 4.5V | |
| Vgs(th) (Max) @ Id | 1V @ 250µA | |
| Gate Charge (Qg) @ Vgs | 17.5nC @ 4.5V | |
| Input Capacitance (Ciss) @ Vds | 1680pF @ 10V | |
| Power - Max | 700mW | |
| Operating Temperature | -55°C ~ 150°C (TJ) | |
| Mounting Type | Surface Mount | |

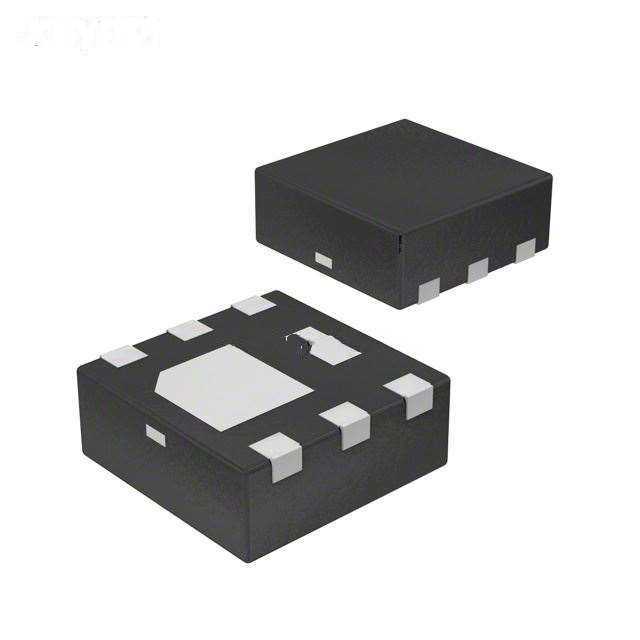

| Package / Case | 6-WDFN Exposed Pad | |
| Supplier Device Package | MicroFET 2x2 | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | FDMA7628 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
FDMA7628 is in stock for immediate shipping now. We are the distributor of Fairchild Semiconductor all series components. The condition of FDMA7628 is new and unused, you can buy FDMA7628 Fairchild Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for FDMA7628.
