| Manufacturer Part Number: | FDMC7200 |
|---|---|
| Manufacturer: | Fairchild Semiconductor |
| Product Category: | Transistors - FETs, MOSFETs - Arrays |
| Available Quantity: | 10515 Pieces |
| Unit Price: | Quote by Email |
| Description: | MOSFET 2N-CH 30V 6A/8A POWER33 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | FDMC7200 Datasheet |
| Internal Part Number | 898-FDMC7200 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Assembly/Origin | Mult Device Assembly Site Chg 18/Feb/2016 | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - FETs, MOSFETs - Arrays | |
| Manufacturer | Fairchild Semiconductor | |
| Series | PowerTrench® | |
| Packaging | Cut Tape (CT) | |
| Part Status | Active | |
| FET Type | 2 N-Channel (Dual) | |
| FET Feature | Logic Level Gate | |
| Drain to Source Voltage (Vdss) | 30V | |
| Current - Continuous Drain (Id) @ 25°C | 6A, 8A | |
| Rds On (Max) @ Id, Vgs | 23.5 mOhm @ 6A, 10V | |
| Vgs(th) (Max) @ Id | 3V @ 250µA | |
| Gate Charge (Qg) @ Vgs | 10nC @ 10V | |
| Input Capacitance (Ciss) @ Vds | 660pF @ 15V | |
| Power - Max | 700mW, 900mW | |
| Operating Temperature | -55°C ~ 150°C (TJ) | |
| Mounting Type | Surface Mount | |

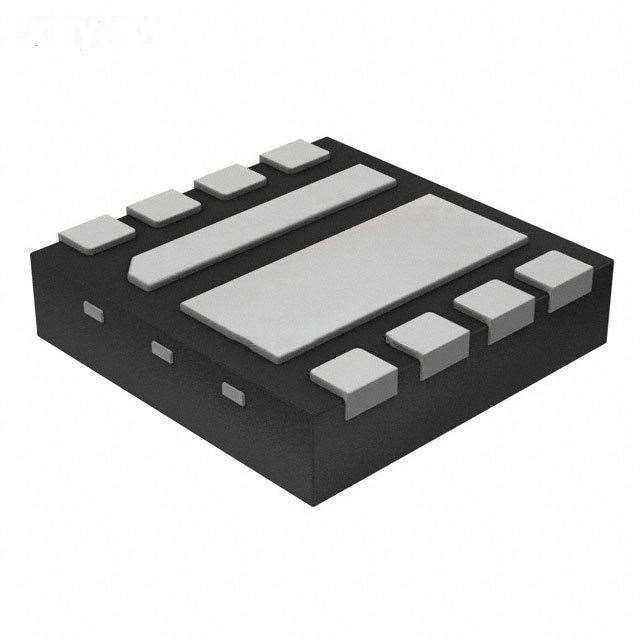

| Package / Case | 8-WDFN Exposed Pad | |
| Supplier Device Package | Power33 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | FDMC7200 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
FDMC7200 is in stock for immediate shipping now. We are the distributor of Fairchild Semiconductor all series components. The condition of FDMC7200 is new and unused, you can buy FDMC7200 Fairchild Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for FDMC7200.
