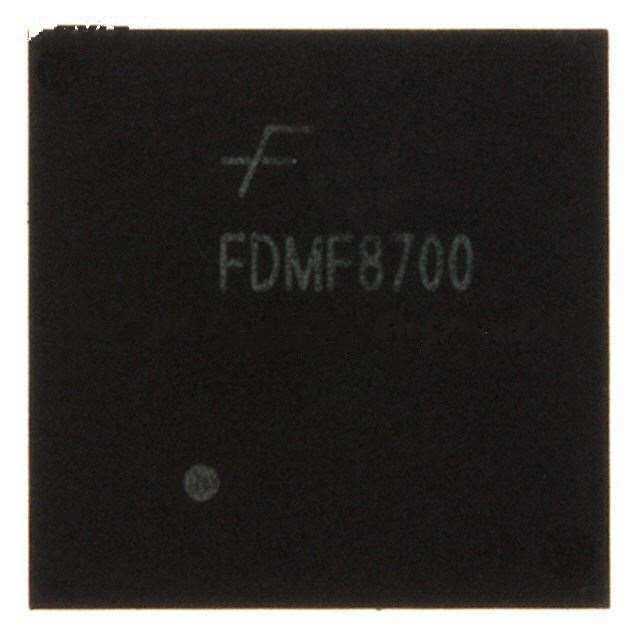

| Manufacturer Part Number: | FDMF8700 |
|---|---|
| Manufacturer: | Fairchild Semiconductor |
| Product Category: | PMIC - Full, Half-Bridge Drivers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | IC MODULE DRIVER/FET POWER88-56 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | FDMF8700 Datasheet |
| Internal Part Number | 898-FDMF8700 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Full, Half-Bridge Drivers | |
| Manufacturer | Fairchild Semiconductor | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| Output Configuration | Half Bridge | |
| Applications | Synchronous Buck Converters | |
| Interface | PWM | |
| Load Type | Inductive | |
| Technology | DrMOS | |
| Rds On (Typ) | - | |
| Current - Output / Channel | 30A | |
| Current - Peak Output | 65A | |
| Voltage - Supply | 6.4 V ~ 13.5 V | |
| Voltage - Load | 6.4 V ~ 14 V | |
| Operating Temperature | -55°C ~ 150°C (TJ) | |
| Features | Bootstrap Circuit | |
| Fault Protection | Shoot-Through, UVLO | |
| Mounting Type | Surface Mount | |
| Package / Case | 56-PowerQFN Module | |
| Supplier Device Package | 56-Power88™ | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | FDMF8700 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
FDMF8700 is in stock for immediate shipping now. We are the distributor of Fairchild Semiconductor all series components. The condition of FDMF8700 is new and unused, you can buy FDMF8700 Fairchild Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for FDMF8700.
