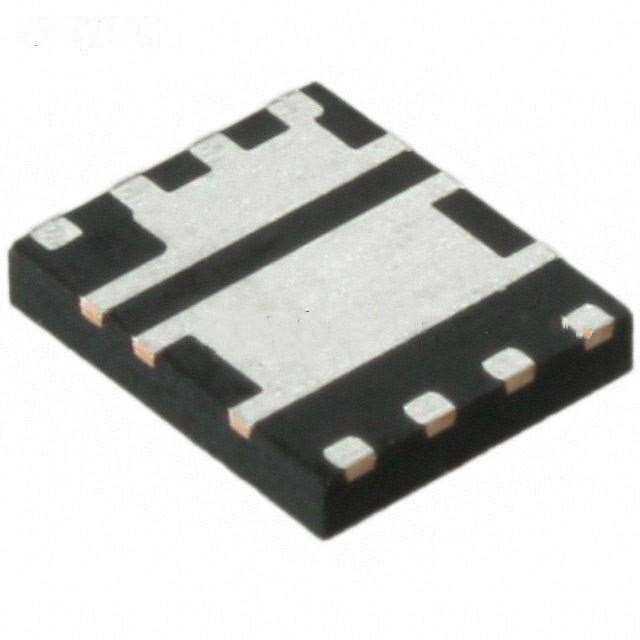

| Manufacturer Part Number: | FDMS3602AS |
|---|---|
| Manufacturer: | Fairchild Semiconductor |
| Product Category: | Transistors - FETs, MOSFETs - Arrays |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | MOSFET 2N-CH 25V 15A/26A POWER56 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | FDMS3602AS Datasheet |
| Internal Part Number | 898-FDMS3602AS | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - FETs, MOSFETs - Arrays | |
| Manufacturer | Fairchild Semiconductor | |
| Series | PowerTrench® | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| FET Type | 2 N-Channel (Dual) Asymmetrical | |
| FET Feature | Logic Level Gate | |
| Drain to Source Voltage (Vdss) | 25V | |
| Current - Continuous Drain (Id) @ 25°C | 15A, 26A | |
| Rds On (Max) @ Id, Vgs | 5.6 mOhm @ 15A, 10V | |
| Vgs(th) (Max) @ Id | 3V @ 250µA | |
| Gate Charge (Qg) @ Vgs | 27nC @ 10V | |
| Input Capacitance (Ciss) @ Vds | 1770pF @ 13V | |
| Power - Max | 2.2W, 2.5W | |
| Operating Temperature | -55°C ~ 150°C (TJ) | |
| Mounting Type | Surface Mount | |
| Package / Case | 8-PowerTDFN | |
| Supplier Device Package | Power56 | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | FDMS3602AS | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
FDMS3602AS is in stock for immediate shipping now. We are the distributor of Fairchild Semiconductor all series components. The condition of FDMS3602AS is new and unused, you can buy FDMS3602AS Fairchild Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for FDMS3602AS.
