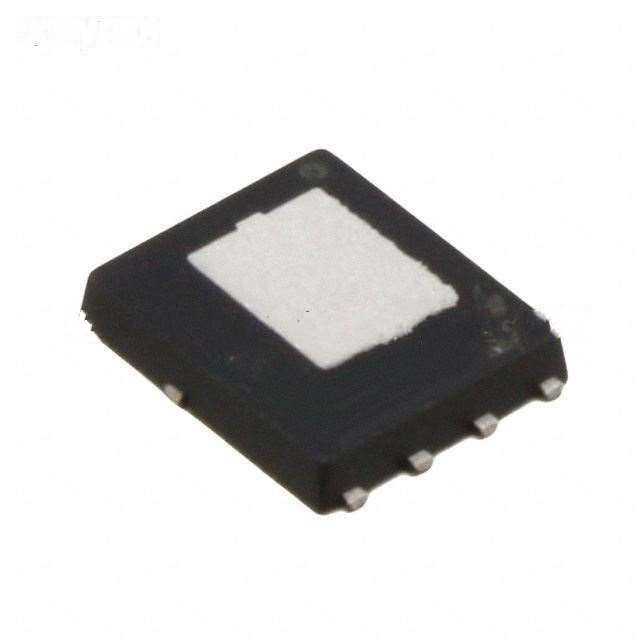

| Manufacturer Part Number: | FDMS86500DC |
|---|---|
| Manufacturer: | Fairchild Semiconductor |
| Product Category: | Transistors - FETs, MOSFETs - Single |
| Available Quantity: | 9539 Pieces |
| Unit Price: | Quote by Email |
| Description: | MOSFET N CH 60V 29A 8-PQFN |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | FDMS86500DC Datasheet |
| Internal Part Number | 898-FDMS86500DC | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | Cloud Systems Computing Mid- and Low-Voltage MOSFETs | |
| PCN Assembly/Origin | Wafer Fab Transfer 29/Sep/2014 | |
| Online Catalog | N-Channel Standard FETs | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - FETs, MOSFETs - Single | |
| Manufacturer | Fairchild Semiconductor | |
| Series | Dual Cool™, PowerTrench® | |
| Packaging | Cut Tape (CT) | |
| Part Status | Active | |
| FET Type | MOSFET N-Channel, Metal Oxide | |
| FET Feature | Standard | |
| Drain to Source Voltage (Vdss) | 60V | |
| Current - Continuous Drain (Id) @ 25°C | 29A (Ta), 108A (Tc) | |
| Rds On (Max) @ Id, Vgs | 2.3 mOhm @ 29A, 10V | |
| Vgs(th) (Max) @ Id | 4.5V @ 250µA | |
| Gate Charge (Qg) @ Vgs | 107nC @ 10V | |
| Input Capacitance (Ciss) @ Vds | 7680pF @ 30V | |
| Power - Max | 3.2W | |
| Operating Temperature | -55°C ~ 150°C (TJ) | |
| Mounting Type | Surface Mount | |
| Package / Case | 8-PowerTDFN | |
| Supplier Device Package | 8-PQFN (5x6), Power56 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | FDMS86500DC | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
FDMS86500DC is in stock for immediate shipping now. We are the distributor of Fairchild Semiconductor all series components. The condition of FDMS86500DC is new and unused, you can buy FDMS86500DC Fairchild Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for FDMS86500DC.
