| Manufacturer Part Number: | FDP8N50NZ |
|---|---|
| Manufacturer: | Fairchild Semiconductor |
| Product Category: | Transistors - FETs, MOSFETs - Single |
| Available Quantity: | 9075 Pieces |
| Unit Price: | Quote by Email |
| Description: | MOSFET N-CH 500V TO-220AB-3 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | FDP8N50NZ Datasheet |
| Internal Part Number | 898-FDP8N50NZ | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Assembly/Origin | Wafer Fabrication 04/Feb/2013 | |
| PCN Packaging | Tape and Box/Reel Barcode Update 07/Aug/2014 | |
| Online Catalog | N-Channel Standard FETs | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - FETs, MOSFETs - Single | |
| Manufacturer | Fairchild Semiconductor | |
| Series | UniFET™ | |
| Packaging | Tube | |
| Part Status | Active | |
| FET Type | MOSFET N-Channel, Metal Oxide | |
| FET Feature | Standard | |
| Drain to Source Voltage (Vdss) | 500V | |
| Current - Continuous Drain (Id) @ 25°C | 8A (Tc) | |
| Rds On (Max) @ Id, Vgs | 850 mOhm @ 4A, 10V | |
| Vgs(th) (Max) @ Id | 5V @ 250µA | |
| Gate Charge (Qg) @ Vgs | 18nC @ 10V | |
| Input Capacitance (Ciss) @ Vds | 735pF @ 25V | |
| Power - Max | 130W | |
| Operating Temperature | -55°C ~ 150°C (TJ) | |
| Mounting Type | Through Hole | |

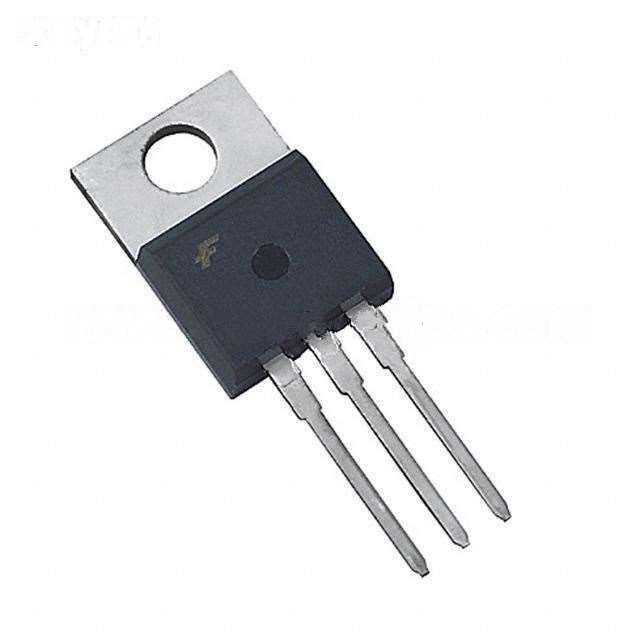

| Package / Case | TO-220-3 | |
| Supplier Device Package | TO-220-3 | |
| Standard Package | 50 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | FDP8N50NZ | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
FDP8N50NZ is in stock for immediate shipping now. We are the distributor of Fairchild Semiconductor all series components. The condition of FDP8N50NZ is new and unused, you can buy FDP8N50NZ Fairchild Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for FDP8N50NZ.
