| Manufacturer Part Number: | FDPC8011S |
|---|---|
| Manufacturer: | Fairchild Semiconductor |
| Product Category: | Transistors - FETs, MOSFETs - Arrays |
| Available Quantity: | 39010 Pieces |
| Unit Price: | Quote by Email |
| Description: | MOSFET 2N-CH 25V 13A/27A 8PQFN |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | FDPC8011S Datasheet |
| Internal Part Number | 898-FDPC8011S | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Assembly/Origin | Wafer 6/8 Inch Addition 16/Jun/2014 | |
| Online Catalog | N-Channel Logic Level Gate FETs | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - FETs, MOSFETs - Arrays | |
| Manufacturer | Fairchild Semiconductor | |
| Series | PowerTrench® | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| FET Type | 2 N-Channel (Dual) Asymmetrical | |
| FET Feature | Logic Level Gate | |
| Drain to Source Voltage (Vdss) | 25V | |
| Current - Continuous Drain (Id) @ 25°C | 13A, 27A | |
| Rds On (Max) @ Id, Vgs | 6 mOhm @ 13A, 10V | |
| Vgs(th) (Max) @ Id | 2.2V @ 250µA | |
| Gate Charge (Qg) @ Vgs | 19nC @ 10V | |
| Input Capacitance (Ciss) @ Vds | 1240pF @ 13V | |
| Power - Max | 800mW, 900mW | |
| Operating Temperature | -55°C ~ 150°C (TJ) | |
| Mounting Type | Surface Mount | |
| Package / Case | 8-PowerWDFN | |

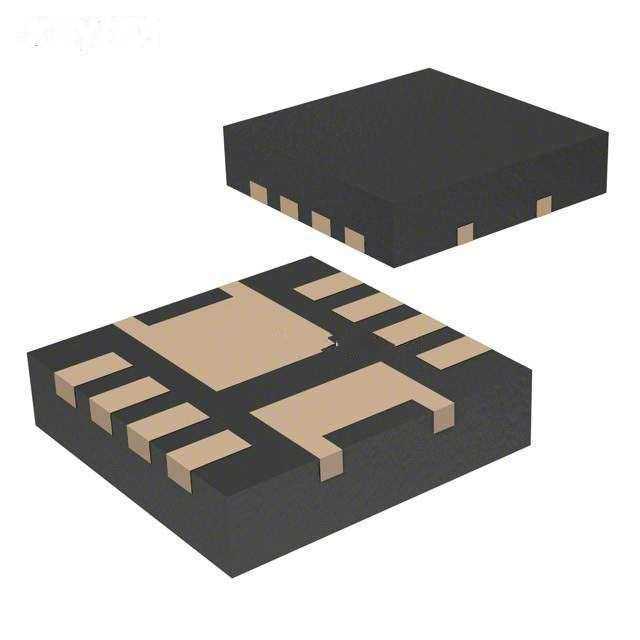

| Supplier Device Package | 8-PQFN (3.3x3.3), Power33 | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | FDPC8011S | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
FDPC8011S is in stock for immediate shipping now. We are the distributor of Fairchild Semiconductor all series components. The condition of FDPC8011S is new and unused, you can buy FDPC8011S Fairchild Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for FDPC8011S.
