| Manufacturer Part Number: | FDQ7698S |
|---|---|
| Manufacturer: | Fairchild Semiconductor |
| Product Category: | Transistors - FETs, MOSFETs - Arrays |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | MOSFET 2N-CH 30V 12A/15A 14SOIC |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | FDQ7698S Datasheet |
| Internal Part Number | 898-FDQ7698S | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - FETs, MOSFETs - Arrays | |
| Manufacturer | Fairchild Semiconductor | |
| Series | PowerTrench® | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| FET Type | 2 N-Channel (Dual) | |
| FET Feature | Logic Level Gate | |
| Drain to Source Voltage (Vdss) | 30V | |
| Current - Continuous Drain (Id) @ 25°C | 12A, 15A | |
| Rds On (Max) @ Id, Vgs | 7.5 mOhm @ 15A, 10V | |
| Vgs(th) (Max) @ Id | 3V @ 250µA | |
| Gate Charge (Qg) @ Vgs | 17nC @ 5V | |
| Input Capacitance (Ciss) @ Vds | 1324pF @ 15V | |
| Power - Max | 1.1W, 1.3W | |
| Operating Temperature | -55°C ~ 150°C (TJ) | |
| Mounting Type | Surface Mount | |

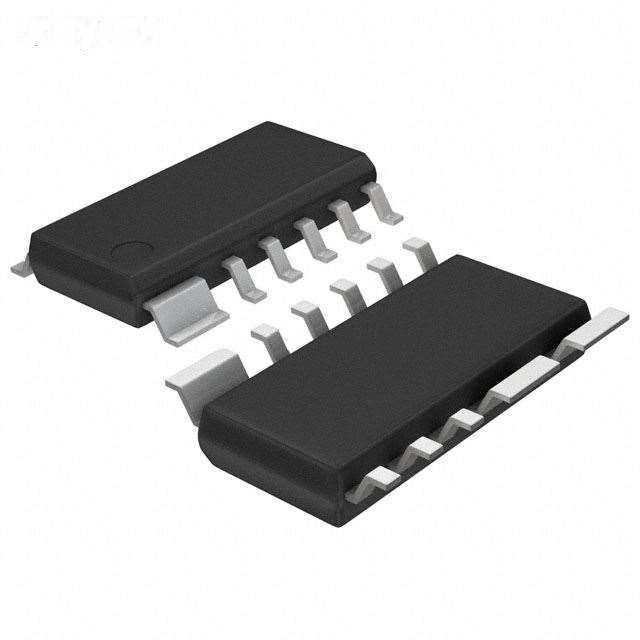

| Package / Case | 14-SOIC (0.154", 3.90mm Width) 11 Leads, Fused Leads | |
| Supplier Device Package | 14-SO | |
| Standard Package | 2,500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | FDQ7698S | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
FDQ7698S is in stock for immediate shipping now. We are the distributor of Fairchild Semiconductor all series components. The condition of FDQ7698S is new and unused, you can buy FDQ7698S Fairchild Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for FDQ7698S.
