| Manufacturer Part Number: | FDZ1323NZ |
|---|---|
| Manufacturer: | Fairchild Semiconductor |
| Product Category: | Transistors - FETs, MOSFETs - Arrays |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | MOSFET 2N-CH 20V 10A 6WLCSP |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | FDZ1323NZ Datasheet |
| Internal Part Number | 898-FDZ1323NZ | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - FETs, MOSFETs - Arrays | |
| Manufacturer | Fairchild Semiconductor | |
| Series | PowerTrench® | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| FET Type | 2 N-Channel (Dual) Common Drain | |
| FET Feature | Logic Level Gate | |
| Drain to Source Voltage (Vdss) | 20V | |
| Current - Continuous Drain (Id) @ 25°C | 10A | |
| Rds On (Max) @ Id, Vgs | 13 mOhm @ 1A, 4.5V | |
| Vgs(th) (Max) @ Id | 1.2V @ 250µA | |
| Gate Charge (Qg) @ Vgs | 24nC @ 10V | |
| Input Capacitance (Ciss) @ Vds | 2055pF @ 10V | |
| Power - Max | 500mW | |
| Operating Temperature | -55°C ~ 150°C (TJ) | |
| Mounting Type | Surface Mount | |

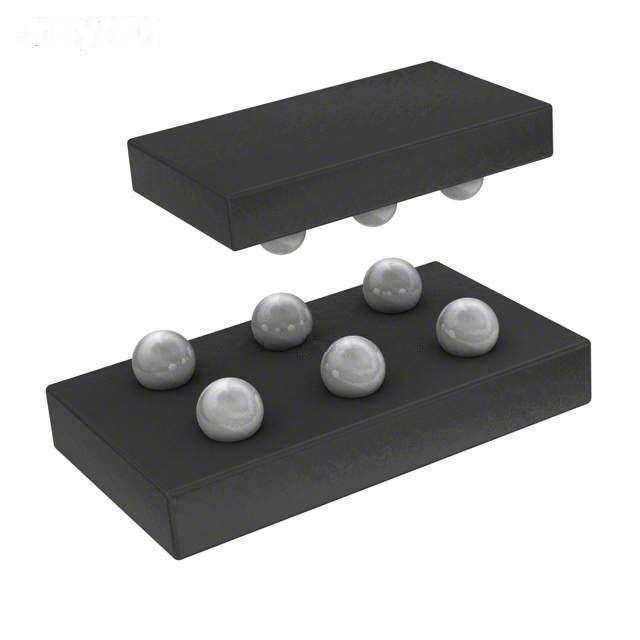

| Package / Case | 6-XFBGA, WLCSP | |
| Supplier Device Package | 6-WLCSP (1.3x2.3) | |
| Standard Package | 5,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | FDZ1323NZ | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
FDZ1323NZ is in stock for immediate shipping now. We are the distributor of Fairchild Semiconductor all series components. The condition of FDZ1323NZ is new and unused, you can buy FDZ1323NZ Fairchild Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for FDZ1323NZ.
