| Manufacturer Part Number: | FGH75T65SHD_F155 |
|---|---|
| Manufacturer: | Fairchild Semiconductor |
| Product Category: | Transistors - IGBTs - Single |
| Available Quantity: | 10148 Pieces |
| Unit Price: | Quote by Email |
| Description: | IGBT Trench Field Stop 650V 150A 455W Through Hole TO-247 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | FGH75T65SHD_F155 Datasheet |
| Internal Part Number | 898-FGH75T65SHD_F155 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | 650 V, 30A/40A/60A, Field Stop Trench, FS3 IGBT for Optimum Performance | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - IGBTs - Single | |
| Manufacturer | Fairchild Semiconductor | |
| Series | - | |
| Packaging | Tube | |
| Part Status | Active | |
| IGBT Type | Trench Field Stop | |
| Voltage - Collector Emitter Breakdown (Max) | 650V | |
| Current - Collector (Ic) (Max) | 150A | |
| Current - Collector Pulsed (Icm) | 225A | |
| Vce(on) (Max) @ Vge, Ic | 2.1V @ 15V, 75A | |
| Power - Max | 455W | |
| Switching Energy | 2.4mJ (on), 720µJ (off) | |
| Input Type | Standard | |
| Gate Charge | 123nC | |
| Td (on/off) @ 25°C | 28ns/80ns | |
| Test Condition | 400V, 75A, 3 Ohm, 15V | |
| Reverse Recovery Time (trr) | 43.4ns | |

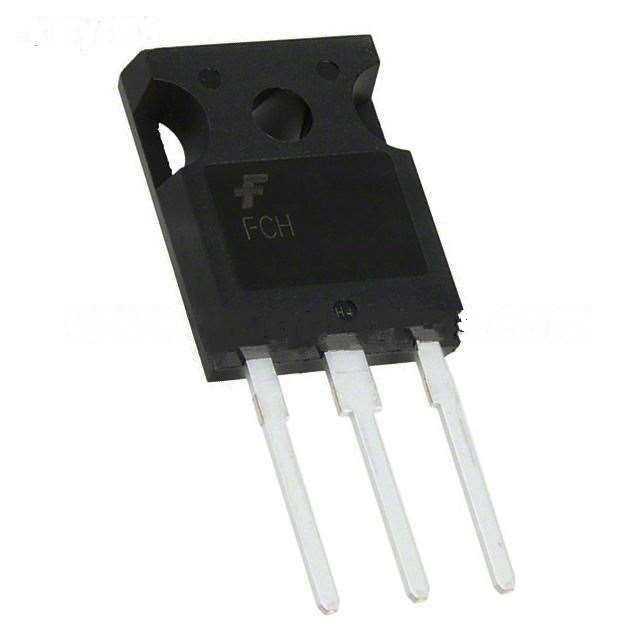

| Package / Case | TO-247-3 | |
| Mounting Type | Through Hole | |
| Supplier Device Package | TO-247 | |
| Standard Package | 30 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | FGH75T65SHD_F155 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
FGH75T65SHD_F155 is in stock for immediate shipping now. We are the distributor of Fairchild Semiconductor all series components. The condition of FGH75T65SHD_F155 is new and unused, you can buy FGH75T65SHD_F155 Fairchild Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for FGH75T65SHD_F155.
