| Manufacturer Part Number: | FGL60N100BNTD |
|---|---|
| Manufacturer: | Fairchild Semiconductor |
| Product Category: | Transistors - IGBTs - Single |
| Available Quantity: | 11562 Pieces |
| Unit Price: | Quote by Email |

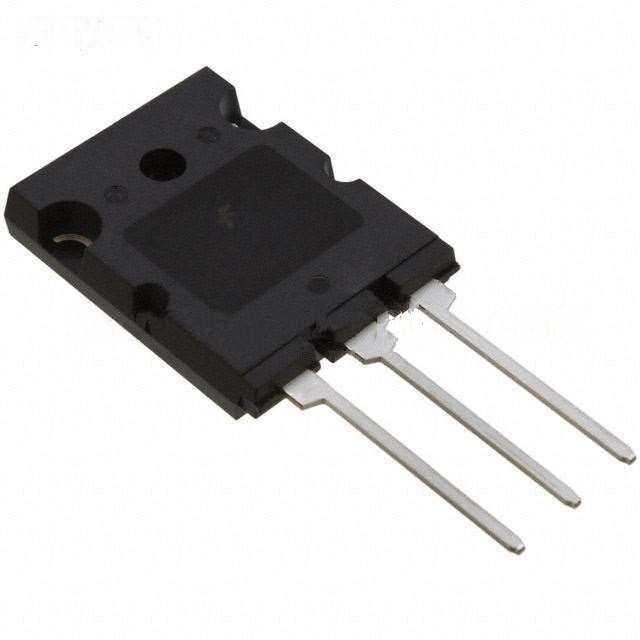

| Description: | IGBT NPT and Trench 1000V 60A 180W Through Hole TO-264 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | FGL60N100BNTD Datasheet |
| Internal Part Number | 898-FGL60N100BNTD | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | High Voltage Switches for Power Processing | |
| Online Catalog | Standard IGBTs | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - IGBTs - Single | |
| Manufacturer | Fairchild Semiconductor | |
| Series | - | |
| Packaging | Tube | |
| Part Status | Not For New Designs | |
| IGBT Type | NPT and Trench | |
| Voltage - Collector Emitter Breakdown (Max) | 1000V | |
| Current - Collector (Ic) (Max) | 60A | |
| Current - Collector Pulsed (Icm) | 120A | |
| Vce(on) (Max) @ Vge, Ic | 2.9V @ 15V, 60A | |
| Power - Max | 180W | |
| Switching Energy | - | |
| Input Type | Standard | |
| Gate Charge | 275nC | |
| Td (on/off) @ 25°C | 140ns/630ns | |
| Test Condition | 600V, 60A, 51 Ohm, 15V | |
| Reverse Recovery Time (trr) | 1.2µs | |
| Package / Case | TO-264-3, TO-264AA | |
| Mounting Type | Through Hole | |
| Supplier Device Package | TO-264 | |
| Standard Package | 25 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | FGL60N100BNTD | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
FGL60N100BNTD is in stock for immediate shipping now. We are the distributor of Fairchild Semiconductor all series components. The condition of FGL60N100BNTD is new and unused, you can buy FGL60N100BNTD Fairchild Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for FGL60N100BNTD.
