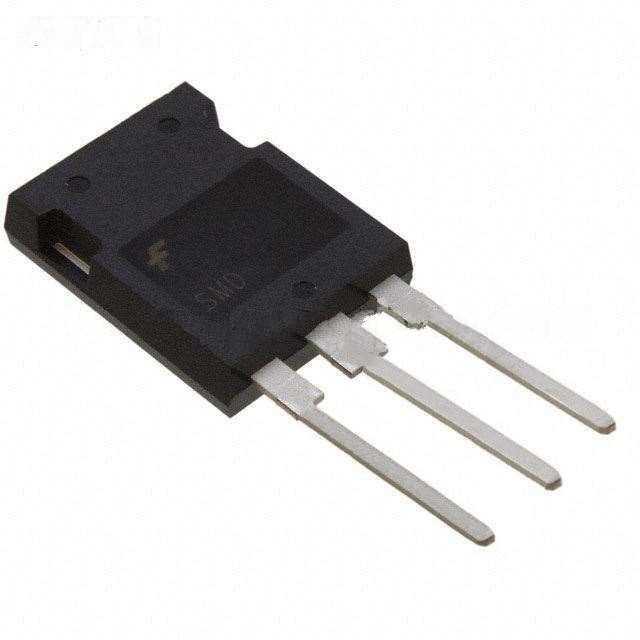

| Manufacturer Part Number: | FGY75N60SMD |
|---|---|
| Manufacturer: | Fairchild Semiconductor |
| Product Category: | Transistors - IGBTs - Single |
| Available Quantity: | 9381 Pieces |
| Unit Price: | Quote by Email |
| Description: | IGBT Field Stop 600V 150A 750W Through Hole PowerTO-247-3 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | FGY75N60SMD Datasheet |
| Internal Part Number | 898-FGY75N60SMD | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Packaging | Tape and Box/Reel Barcode Update 07/Aug/2014 | |
| Online Catalog | Standard IGBTs | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - IGBTs - Single | |
| Manufacturer | Fairchild Semiconductor | |
| Series | - | |
| Packaging | Tube | |
| Part Status | Active | |
| IGBT Type | Field Stop | |
| Voltage - Collector Emitter Breakdown (Max) | 600V | |
| Current - Collector (Ic) (Max) | 150A | |
| Current - Collector Pulsed (Icm) | 225A | |
| Vce(on) (Max) @ Vge, Ic | 2.5V @ 15V, 75A | |
| Power - Max | 750W | |
| Switching Energy | 2.3mJ (on), 770µJ (off) | |
| Input Type | Standard | |
| Gate Charge | 248nC | |
| Td (on/off) @ 25°C | 24ns/136ns | |
| Test Condition | 400V, 75A, 3 Ohm, 15V | |
| Reverse Recovery Time (trr) | 55ns | |
| Package / Case | TO-247-3 Exposed Pad | |
| Mounting Type | Through Hole | |
| Supplier Device Package | PowerTO-247-3 | |
| Standard Package | 30 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | FGY75N60SMD | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
FGY75N60SMD is in stock for immediate shipping now. We are the distributor of Fairchild Semiconductor all series components. The condition of FGY75N60SMD is new and unused, you can buy FGY75N60SMD Fairchild Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for FGY75N60SMD.
