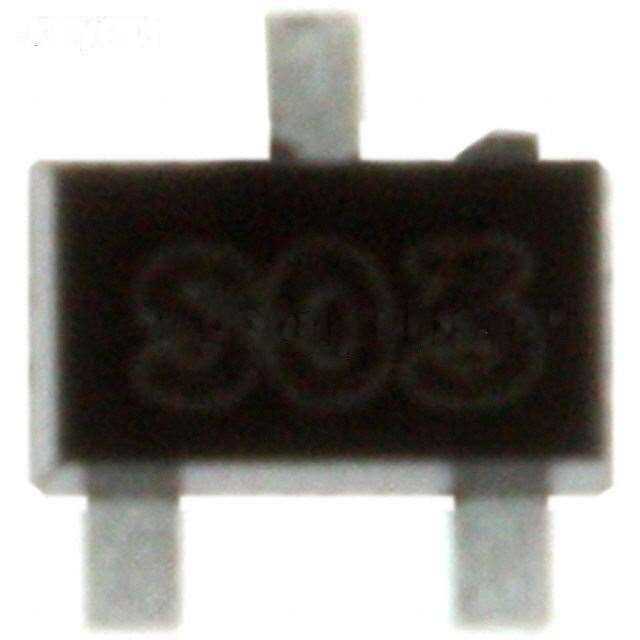

| Manufacturer Part Number: | FJY3003R |
|---|---|
| Manufacturer: | Fairchild Semiconductor |
| Product Category: | Transistors - Bipolar (BJT) - Single, Pre-Biased |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | TRANS PREBIAS NPN 200MW SOT523F |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | FJY3003R Datasheet |
| Internal Part Number | 898-FJY3003R | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Design/Specification | Mold Compound 20/Aug/2008 | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - Bipolar (BJT) - Single, Pre-Biased | |
| Manufacturer | Fairchild Semiconductor | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| Transistor Type | NPN - Pre-Biased | |
| Current - Collector (Ic) (Max) | 100mA | |
| Voltage - Collector Emitter Breakdown (Max) | 50V | |
| Resistor - Base (R1) (Ohms) | 22k | |
| Resistor - Emitter Base (R2) (Ohms) | 22k | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 56 @ 5mA, 5V | |
| Vce Saturation (Max) @ Ib, Ic | 300mV @ 500µA, 10mA | |
| Current - Collector Cutoff (Max) | 100nA (ICBO) | |
| Frequency - Transition | 250MHz | |
| Power - Max | 200mW | |
| Mounting Type | Surface Mount | |
| Package / Case | SC-89, SOT-490 | |
| Supplier Device Package | SOT-523F | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | FJY3003R | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
FJY3003R is in stock for immediate shipping now. We are the distributor of Fairchild Semiconductor all series components. The condition of FJY3003R is new and unused, you can buy FJY3003R Fairchild Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for FJY3003R.
