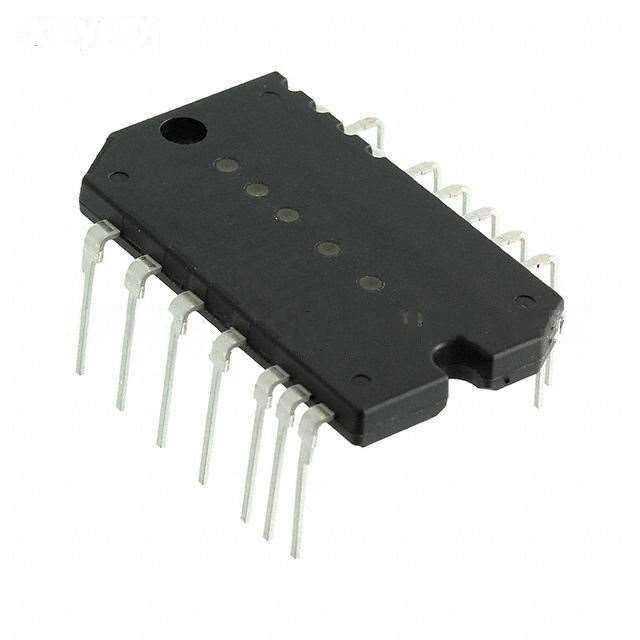

| Manufacturer Part Number: | FNA51560T3 |
|---|---|
| Manufacturer: | Fairchild Semiconductor |
| Product Category: | Power Driver Modules |
| Available Quantity: | 9070 Pieces |
| Unit Price: | Quote by Email |
| Description: | Power Driver Module IGBT 3 Phase 600V 15A Module |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | FNA51560T3 Datasheet |
| Internal Part Number | 898-FNA51560T3 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Discrete Semiconductor Products | |
| Family | Power Driver Modules | |
| Manufacturer | Fairchild Semiconductor | |
| Series | Motion-SPM® | |
| Part Status | Active | |
| Type | IGBT | |
| Configuration | 3 Phase | |
| Current | 15A | |
| Voltage | 600V | |
| Voltage - Isolation | 1500Vrms | |
| Package / Case | Module | |
| Standard Package | 13 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | FNA51560T3 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
FNA51560T3 is in stock for immediate shipping now. We are the distributor of Fairchild Semiconductor all series components. The condition of FNA51560T3 is new and unused, you can buy FNA51560T3 Fairchild Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for FNA51560T3.
