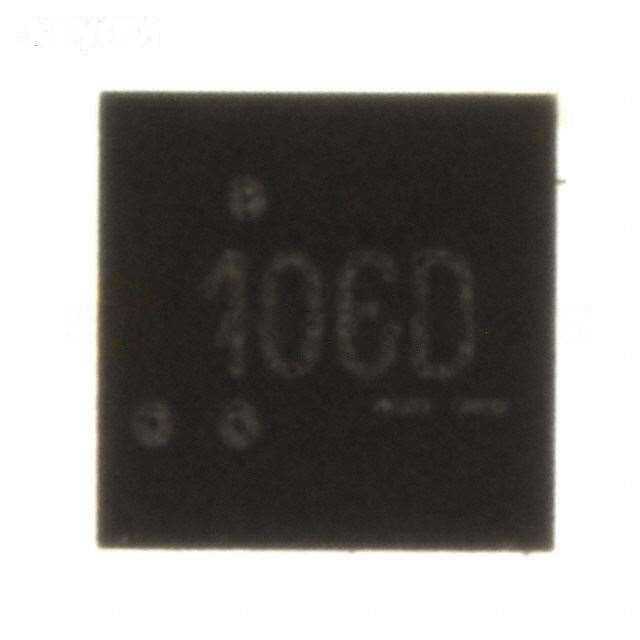

Manufacturer Part Number: | FPF1006 |
---|---|
Manufacturer: | Fairchild Semiconductor |
Product Category: | PMIC - Power Distribution Switches, Load Drivers |
Available Quantity: | 15065 Pieces |
Unit Price: | Quote by Email |
Description: | IC LOAD SW P-CH MOSFET 6MICROFET |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | FPF1006 Datasheet |
Internal Part Number | 898-FPF1006 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
PCN Design/Specification | Marking Content 19/Nov/2013 | |
Online Catalog | General Purpose | |
Category | Integrated Circuits (ICs) | |
Family | PMIC - Power Distribution Switches, Load Drivers | |
Manufacturer | Fairchild Semiconductor | |
Series | IntelliMAX™ | |
Packaging | Cut Tape (CT) | |
Part Status | Active | |
Switch Type | General Purpose | |
Number of Outputs | 1 | |
Ratio - Input:Output | 1:1 | |
Output Configuration | High Side | |
Output Type | P-Channel | |
Interface | On/Off | |
Voltage - Load | 1.2 V ~ 5.5 V | |
Voltage - Supply (Vcc/Vdd) | Not Required | |
Current - Output (Max) | 1.5A | |
Rds On (Typ) | 50 mOhm | |
Input Type | Non-Inverting | |
Features | Load Discharge, Slew Rate Controlled | |
Fault Protection | - | |
Operating Temperature | -40°C ~ 85°C (TA) | |
Package / Case | 6-WDFN Exposed Pad | |
Supplier Device Package | 6-MLP (2x2) | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | FPF1006 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
FPF1006 is in stock for immediate shipping now. We are the distributor of Fairchild Semiconductor all series components. The condition of FPF1006 is new and unused, you can buy FPF1006 Fairchild Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for FPF1006.
