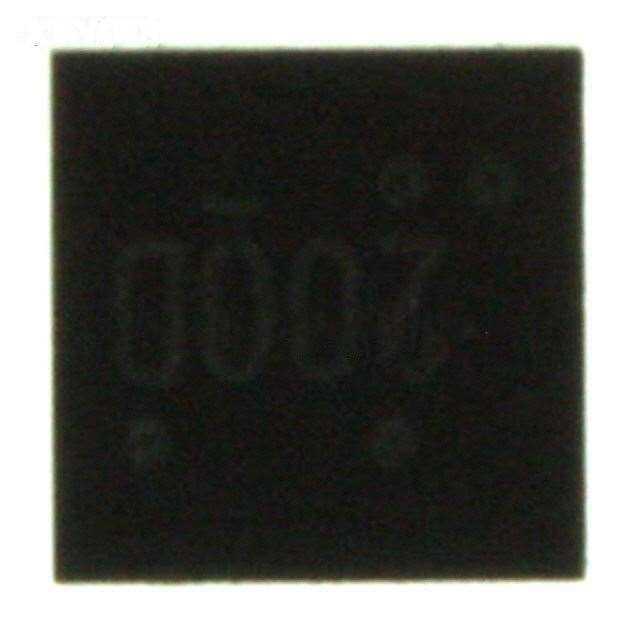

Manufacturer Part Number: | FPF2200 |
---|---|
Manufacturer: | Fairchild Semiconductor |
Product Category: | PMIC - Power Distribution Switches, Load Drivers |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | IC LOAD SWITCH 500MA 6-MICROFET |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | FPF2200 Datasheet |
Internal Part Number | 898-FPF2200 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
PCN Design/Specification | Marking Content 19/Nov/2013 | |
Category | Integrated Circuits (ICs) | |
Family | PMIC - Power Distribution Switches, Load Drivers | |
Manufacturer | Fairchild Semiconductor | |
Series | - | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Switch Type | General Purpose | |
Number of Outputs | 1 | |
Ratio - Input:Output | 1:1 | |
Output Configuration | High Side | |
Output Type | P-Channel | |
Interface | On/Off | |
Voltage - Load | 1.8 V ~ 5.5 V | |
Voltage - Supply (Vcc/Vdd) | Not Required | |
Current - Output (Max) | 500mA | |
Rds On (Typ) | 140 mOhm | |
Input Type | Non-Inverting | |
Features | Auto Restart, Load Discharge, Status Flag | |
Fault Protection | Current Limiting (Fixed), Over Temperature, UVLO | |
Operating Temperature | -40°C ~ 85°C (TA) | |
Package / Case | 6-WDFN Exposed Pad | |
Supplier Device Package | 6-MicroFET (2x2) | |
Standard Package | 3,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | FPF2200 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
FPF2200 is in stock for immediate shipping now. We are the distributor of Fairchild Semiconductor all series components. The condition of FPF2200 is new and unused, you can buy FPF2200 Fairchild Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for FPF2200.
