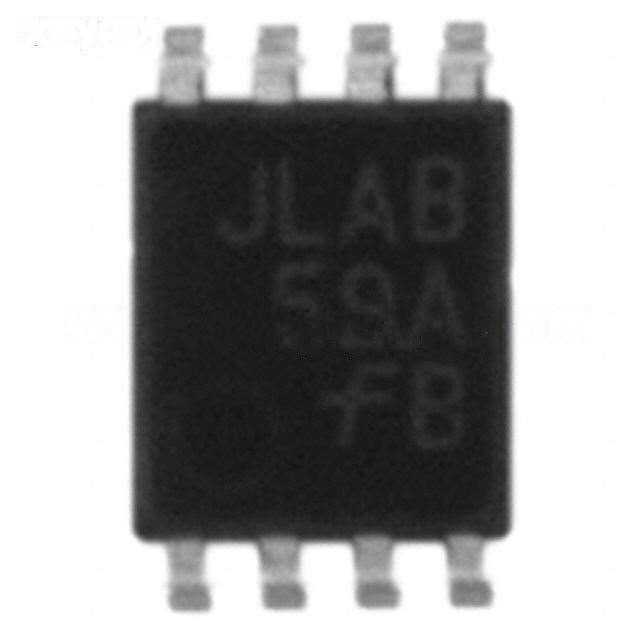

| Manufacturer Part Number: | FSA1259AK8X |
|---|---|
| Manufacturer: | Fairchild Semiconductor |
| Product Category: | Interface - Analog Switches, Multiplexers, Demultiplexers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 2 Circuit IC Switch 1:1 850 mOhm US8 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | FSA1259AK8X Datasheet |
| Internal Part Number | 898-FSA1259AK8X | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | Switch | |
| Category | Integrated Circuits (ICs) | |
| Family | Interface - Analog Switches, Multiplexers, Demultiplexers | |
| Manufacturer | Fairchild Semiconductor | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Switch Circuit | SPST - NO | |
| Multiplexer/Demultiplexer Circuit | 1:1 | |
| Number of Circuits | 2 | |
| On-State Resistance (Max) | 850 mOhm | |
| Channel-to-Channel Matching (ΔRon) | 50 mOhm | |
| Voltage - Supply, Single (V+) | 1.65 V ~ 5.5 V | |
| Voltage - Supply, Dual (V±) | - | |
| Switch Time (Ton, Toff) (Max) | 7.5ns, 17ns | |
| -3db Bandwidth | 240MHz | |
| Charge Injection | 15pC | |
| Channel Capacitance (CS(off), CD(off)) | 21pF | |
| Current - Leakage (IS(off)) (Max) | 10nA | |
| Crosstalk | -73dB @ 1MHz | |
| Operating Temperature | -40°C ~ 85°C (TA) | |
| Package / Case | 8-VFSOP (0.091", 2.30mm Width) | |
| Supplier Device Package | US8 | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | FSA1259AK8X | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
FSA1259AK8X is in stock for immediate shipping now. We are the distributor of Fairchild Semiconductor all series components. The condition of FSA1259AK8X is new and unused, you can buy FSA1259AK8X Fairchild Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for FSA1259AK8X.
