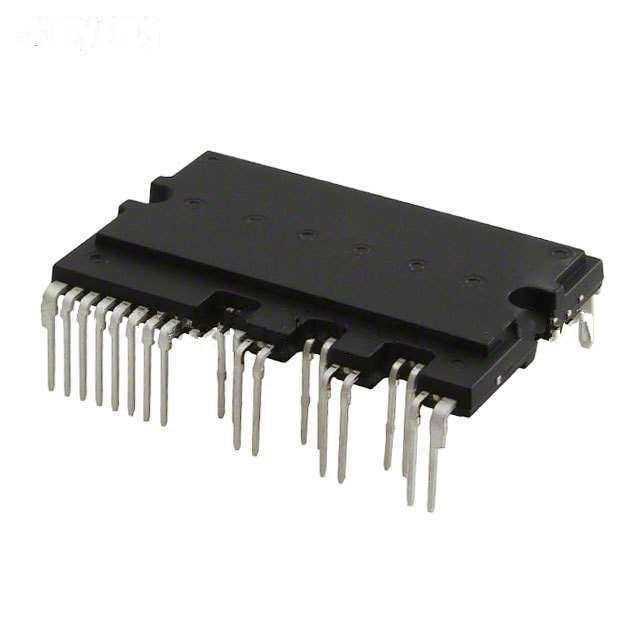

| Manufacturer Part Number: | FSBF15CH60BT |
|---|---|
| Manufacturer: | Fairchild Semiconductor |
| Product Category: | Power Driver Modules |
| Available Quantity: | 9037 Pieces |
| Unit Price: | Quote by Email |
| Description: | Power Driver Module IGBT 3 Phase 600V 15A SPM27JA |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | FSBF15CH60BT Datasheet |
| Internal Part Number | 898-FSBF15CH60BT | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Design/Specification | Retract Pin Position 03/Jan/2008 Datasheet Chg 11/Mar2016 Marking Chg 04/May/2016 | |
| PCN Assembly/Origin | Wafer Size Update 29/Sep/2014 Cancellation of PCN P578AAB 20/Apr/2016 | |
| PCN Packaging | Tape Retract Pin 14/May/2008 Tape and Box/Reel Barcode Update 07/Aug/2014 | |
| Article Library | Over Current Protection or Short Circuit Protection - Article | |
| Online Catalog | Motion-SPM™ SPM3 Series | |
| Category | Discrete Semiconductor Products | |
| Family | Power Driver Modules | |
| Manufacturer | Fairchild Semiconductor | |
| Series | Motion-SPM® | |
| Part Status | Active | |
| Type | IGBT | |
| Configuration | 3 Phase | |
| Current | 15A | |
| Voltage | 600V | |
| Voltage - Isolation | 2500Vrms | |
| Package / Case | SPM27JA | |
| Standard Package | 10 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | FSBF15CH60BT | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
FSBF15CH60BT is in stock for immediate shipping now. We are the distributor of Fairchild Semiconductor all series components. The condition of FSBF15CH60BT is new and unused, you can buy FSBF15CH60BT Fairchild Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for FSBF15CH60BT.
