| Manufacturer Part Number: | FSCQ0565RTYDTU |
|---|---|
| Manufacturer: | Fairchild Semiconductor |
| Product Category: | PMIC - AC DC Converters, Offline Switchers |
| Available Quantity: | 9246 Pieces |
| Unit Price: | Quote by Email |
| Description: | Converter Offline Flyback Topology 20kHz TO-220F-5L (Forming) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | FSCQ0565RTYDTU Datasheet |
| Internal Part Number | 898-FSCQ0565RTYDTU | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Packaging | Tape and Box/Reel Barcode Update 07/Aug/2014 | |
| Online Catalog | AC DC Converters, Offline Switchers | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - AC DC Converters, Offline Switchers | |
| Manufacturer | Fairchild Semiconductor | |
| Series | FSCQ | |
| Packaging | Tube | |
| Part Status | Active | |
| Output Isolation | Isolated | |
| Internal Switch(s) | Yes | |
| Voltage - Breakdown | 650V | |
| Topology | Flyback | |
| Voltage - Start Up | 15V | |
| Voltage - Supply (Vcc/Vdd) | 9 V ~ 20 V | |
| Duty Cycle | 95% | |
| Frequency - Switching | 20kHz | |
| Power (Watts) | 70W | |
| Fault Protection | Current Limiting, Over Load, Over Temperature, Over Voltage | |
| Control Features | Sync | |
| Operating Temperature | -25°C ~ 85°C (TA) | |

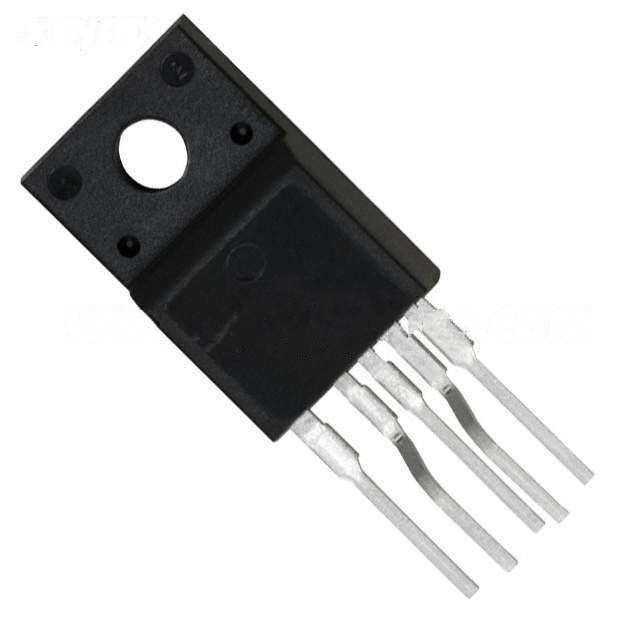

| Package / Case | TO-220-5 Full Pack (Formed Leads) | |
| Supplier Device Package | TO-220F-5L (Forming) | |
| Mounting Type | Through Hole | |
| Standard Package | 50 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | FSCQ0565RTYDTU | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
FSCQ0565RTYDTU is in stock for immediate shipping now. We are the distributor of Fairchild Semiconductor all series components. The condition of FSCQ0565RTYDTU is new and unused, you can buy FSCQ0565RTYDTU Fairchild Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for FSCQ0565RTYDTU.
