| Manufacturer Part Number: | FSGM0465RBUDTU |
|---|---|
| Manufacturer: | Fairchild Semiconductor |
| Product Category: | PMIC - AC DC Converters, Offline Switchers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Converter Offline Flyback Topology 66kHz TO-220F-6W (W-Forming) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | FSGM0465RBUDTU Datasheet |
| Internal Part Number | 898-FSGM0465RBUDTU | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - AC DC Converters, Offline Switchers | |
| Manufacturer | Fairchild Semiconductor | |
| Series | FPS™ | |
| Packaging | Tube | |
| Part Status | Obsolete | |
| Output Isolation | Isolated | |
| Internal Switch(s) | Yes | |
| Voltage - Breakdown | 650V | |
| Topology | Flyback | |
| Voltage - Start Up | 12V | |
| Voltage - Supply (Vcc/Vdd) | 7.5 V ~ 26 V | |
| Duty Cycle | 70% | |
| Frequency - Switching | 66kHz | |
| Power (Watts) | 70W | |
| Fault Protection | Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit | |
| Control Features | - | |
| Operating Temperature | -40°C ~ 125°C (TJ) | |

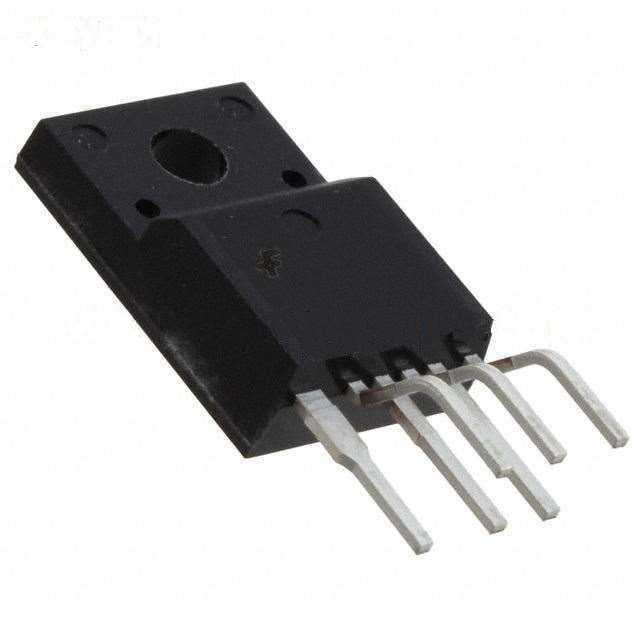

| Package / Case | TO-220-6 Formed Leads | |
| Supplier Device Package | TO-220F-6W (W-Forming) | |
| Mounting Type | Surface Mount | |
| Standard Package | 400 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | FSGM0465RBUDTU | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
FSGM0465RBUDTU is in stock for immediate shipping now. We are the distributor of Fairchild Semiconductor all series components. The condition of FSGM0465RBUDTU is new and unused, you can buy FSGM0465RBUDTU Fairchild Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for FSGM0465RBUDTU.
