| Manufacturer Part Number: | GA10SICP12-263 |
|---|---|
| Manufacturer: | GeneSiC Semiconductor |
| Product Category: | Transistors - FETs, MOSFETs - Single |
| Available Quantity: | 9396 Pieces |
| Unit Price: | Quote by Email |
| Description: | TRANS SJT 1200V 25A TO263-7 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | GA10SICP12-263 Datasheet |
| Internal Part Number | 898-GA10SICP12-263 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | Silicon Carbide (SiC) Super Junction FETs | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - FETs, MOSFETs - Single | |
| Manufacturer | GeneSiC Semiconductor | |
| Series | - | |
| Packaging | Tube | |
| Part Status | Active | |
| FET Type | Junction Transistor, Normally Off | |
| FET Feature | Silicon Carbide (SiC) | |
| Drain to Source Voltage (Vdss) | 1200V (1.2kV) | |
| Current - Continuous Drain (Id) @ 25°C | 25A (Tc) | |
| Rds On (Max) @ Id, Vgs | 100 mOhm @ 10A | |
| Vgs(th) (Max) @ Id | - | |
| Gate Charge (Qg) @ Vgs | - | |
| Input Capacitance (Ciss) @ Vds | 1403pF @ 800V | |
| Power - Max | 170W | |
| Operating Temperature | 175°C (TJ) | |
| Mounting Type | Surface Mount | |

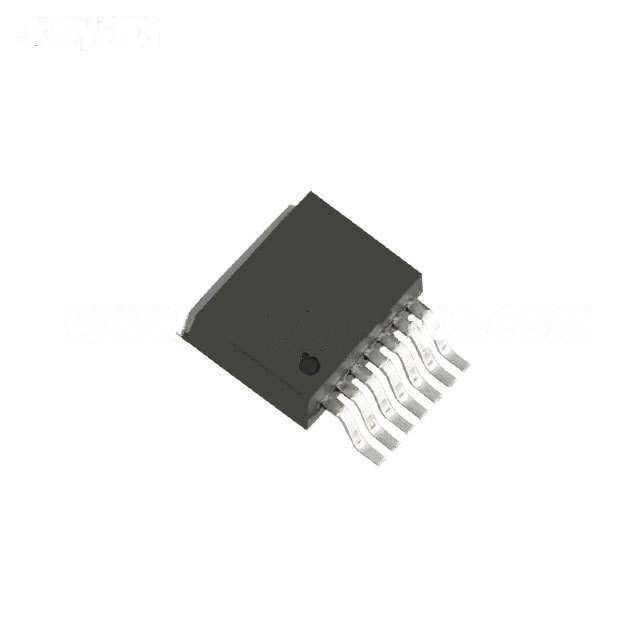

| Package / Case | TO-263-8, D²Pak (7 Leads + Tab), TO-263CA | |
| Supplier Device Package | D2PAK (7-Lead) | |
| Standard Package | 50 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | GA10SICP12-263 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
GA10SICP12-263 is in stock for immediate shipping now. We are the distributor of GeneSiC Semiconductor all series components. The condition of GA10SICP12-263 is new and unused, you can buy GA10SICP12-263 GeneSiC Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for GA10SICP12-263.
