| Manufacturer Part Number: | HAT2168H-EL-E |
|---|---|
| Manufacturer: | Renesas Electronics America |
| Product Category: | Transistors - FETs, MOSFETs - Single |
| Available Quantity: | 14010 Pieces |
| Unit Price: | Quote by Email |
| Description: | MOSFET N-CH 30V 30A 5LFPAK |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | HAT2168H-EL-E Datasheet |
| Internal Part Number | 898-HAT2168H-EL-E | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | RoHS Compliance | |
| Online Catalog | N-Channel Logic Level Gate FETs | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - FETs, MOSFETs - Single | |
| Manufacturer | Renesas Electronics America | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| FET Type | MOSFET N-Channel, Metal Oxide | |
| FET Feature | Logic Level Gate, 4.5V Drive | |
| Drain to Source Voltage (Vdss) | 30V | |
| Current - Continuous Drain (Id) @ 25°C | 30A (Ta) | |
| Rds On (Max) @ Id, Vgs | 7.9 mOhm @ 15A, 10V | |
| Vgs(th) (Max) @ Id | - | |
| Gate Charge (Qg) @ Vgs | 11nC @ 4.5V | |
| Input Capacitance (Ciss) @ Vds | 1730pF @ 10V | |
| Power - Max | 15W | |
| Operating Temperature | 150°C (TJ) | |
| Mounting Type | Surface Mount | |

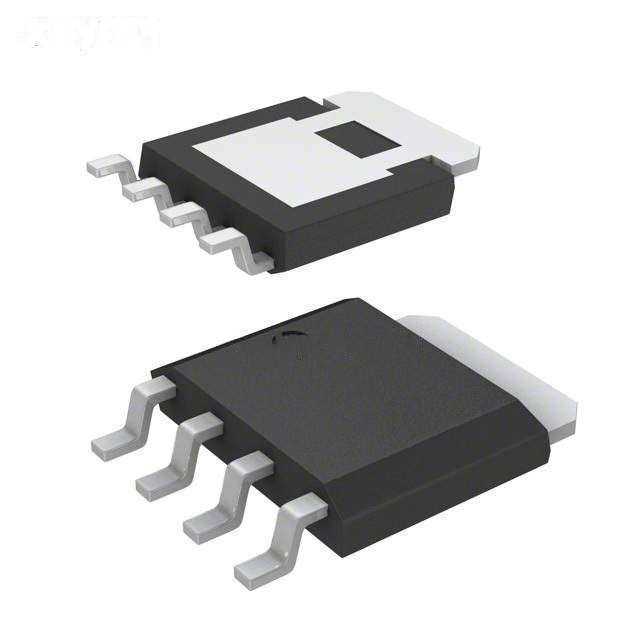

| Package / Case | SC-100, SOT-669 | |
| Supplier Device Package | LFPAK | |
| Standard Package | 2,500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | HAT2168H-EL-E | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
HAT2168H-EL-E is in stock for immediate shipping now. We are the distributor of Renesas Electronics America all series components. The condition of HAT2168H-EL-E is new and unused, you can buy HAT2168H-EL-E Renesas Electronics America with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for HAT2168H-EL-E.
